Dust Collector Center: Unleashing the Power of Clean Air

Introduction

In today’s fast-paced industrial landscape, maintaining a safe and clean working environment is not just a regulatory requirement—it’s a business imperative. Enter the Dust Collector Center: a cutting-edge solution engineered to capture harmful dust and particulate matter effectively. This sophisticated equipment is crucial for ensuring air quality, minimizing health risks, and optimizing productivity in woodworking, metalworking, and various manufacturing sectors. Let’s delve into the features, specifications, and benefits the Dust Collector Center offers by examining the ITE9055Z, ITE9075Z, and ITE9011Z models.

Model Overview

1. ITE9055Z

The ITE9055Z model is designed for workshops that require effective dust collection without compromising on space. Its compact size doesn’t undermine its efficiency, as it packs a powerful motor that delivers an air delivery rate of 8,000 to 9,000 m³/h.

  • Motor Power: 5.5 kW
  • Air Delivery: 8000-9000 m³/h
  • Air Speed: 40-45 m/s
  • Inlet Diameter: φ5”*5 pcs
  • Collector Bag: 1 pcs of φ650mm + 16 pcs of φ180mm

This model’s silent operation and large collector capacity of 204 kg make it perfect for smaller operations requiring constant air filtration.

ITE9055Z

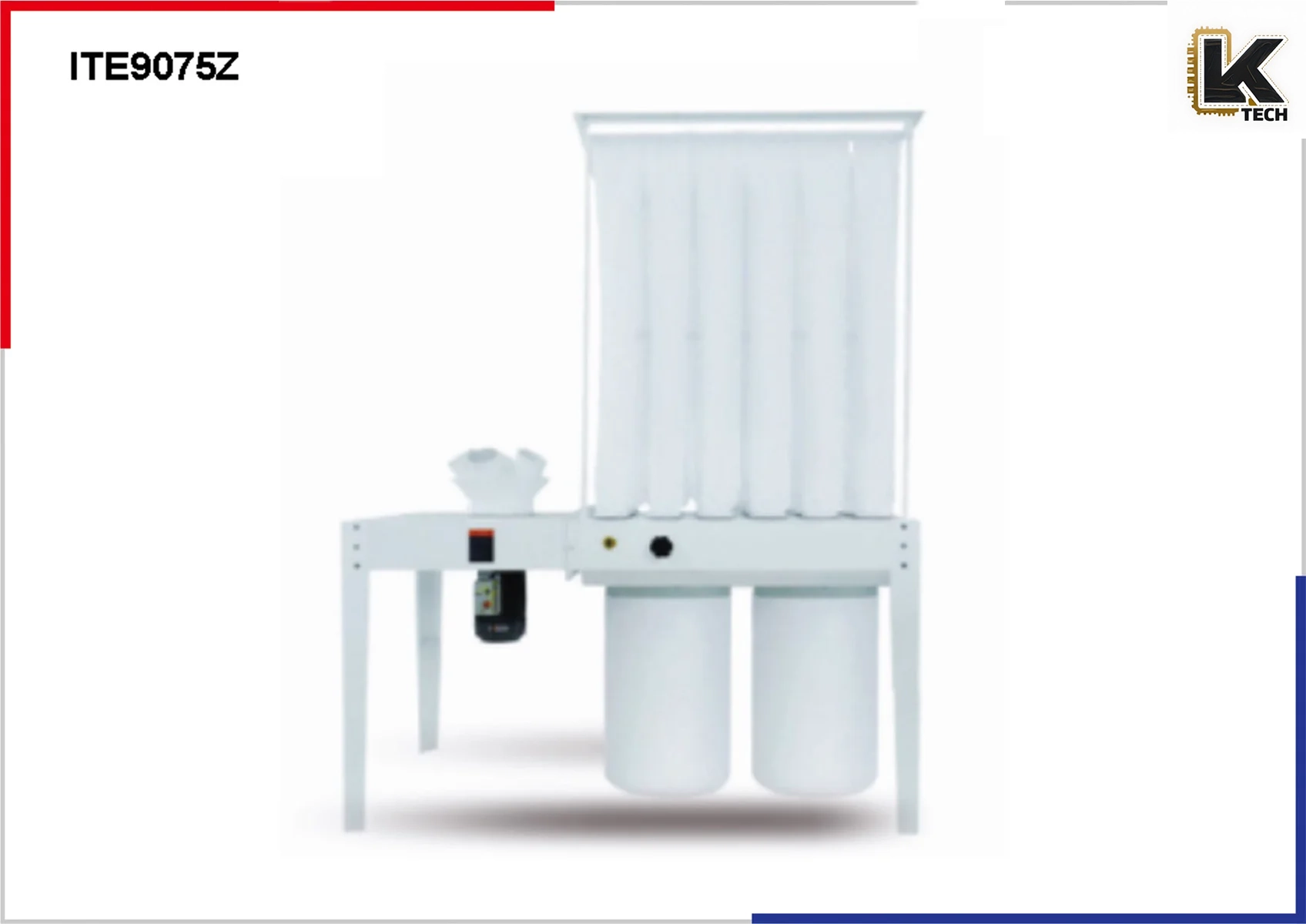

2. ITE9075Z

The ITE9075Z model ups the ante with a motor power of 7.5 kW, designed for medium-sized workshops. With an air delivery capability of 11,000 m³/h, it provides robust performance against larger dust loads.

  • Motor Power: 7.5 kW
  • Air Delivery: 11000 m³/h
  • Air Speed: 40-45 m/s
  • Inlet Diameter: φ6” (150mm)*5 pcs
  • Collector Bag: 2 pcs of φ630mm + 24 pcs of φ180mm

Weighing in at 350 kg, this model boasts an even greater output, making it suitable for environments demanding higher air flow and dust retention.

ITE9075Z

3. ITE9011Z

The flagship ITE9011Z model embodies the pinnacle of dust collection technology. With an 11 kW motor, this powerhouse is capable of delivering an astounding 16,000 m³/h of airflow, catering to the most demanding industrial applications.

  • Motor Power: 11 kW
  • Air Delivery: 16000 m³/h
  • Air Speed: 40-45 m/s
  • Inlet Diameter: φ6” (150mm)*6 pcs
  • Collector Bag: 4 pcs of φ630mm + 48 pcs of φ180mm

Its impressive features and a net weight of 480 kg ensure that this model is ready for action where high-performance dust filtration is a necessity.

ITE9011Z

Key Features

High Efficiency

Each model in the Dust Collector Center lineup is crafted to maximize air flow while optimizing filtration efficiency. With advanced bag filters and cyclonic separators, harmful dust is contained and removed rapidly, keeping the air clean and your team safe.

Versatile Applications

The flexibility of configurations allows these dust collectors to fit into various workshop settings, whether you’re working with wood, metal, plastics, or other industrial materials. Each model can be seamlessly integrated into your existing dust management system.

Simplified Maintenance

An easy-access design ensures that dust bags and filters can be serviced with minimal downtime. Regular maintenance is crucial for keeping operations efficient, and the Dust Collector Center minimizes disruption to your workflow.

Smart Control System

Equipped with user-friendly controls, the Dust Collector Center allows you to effectively manage dust collection operations. The intuitive setup means operators can quickly initiate, adjust, and monitor the system functionality.

Robust Construction

Built from high-quality materials, these dust collectors are designed to withstand even the toughest operational environments. Their sturdy construction means they can endure harsh conditions while continuing to operate at peak efficiency.

Specifications Summary

Model ITE9055Z ITE9075Z ITE9011Z
Motor power (kW) 5.5 7.5 11
Air delivery (m³/h) 8000-9000 11000 16000
Air speed (m/sec) 40-45 40-45 40-45
Inlet diameter ø5"×5 pcs ø6"(150mm)×5 pcs ø6"(150mm)×6 pcs
Collector bag ø650×1 pcs + ø180×16 pcs ø630mm×2 pcs + ø180mm×24 pcs ø630mm×4 pcs + ø180mm×48 pcs
Overall size (mm) 1450×750×3100 2350×1000×3100 4000×1040×3150
Packing Size (mm) 1450×750×730 1160×1040×900 + 1600×1160×490 1150×1050×920 + 1250×1050×1700
Net Weight (kg) 204 350 480
Gross Weight (kg) 214 360 500

Conclusion

The Dust Collector Center is an indispensable addition for any workshop looking to enhance air quality while optimizing operational efficiency. With a focus on sustainability and safety, aligning your business with one of these models will bolster productivity and safeguard the health of your workforce. Choose between the compact yet effective ITE9055Z, the versatile ITE9075Z, or the high-capacity ITE9011Z model, and take the first step toward cleaner air and a safer workspace.

Invest in the future of your workshop: Effective, Efficient, and Essential. Contact us today to learn more about the Dust Collector Center!
