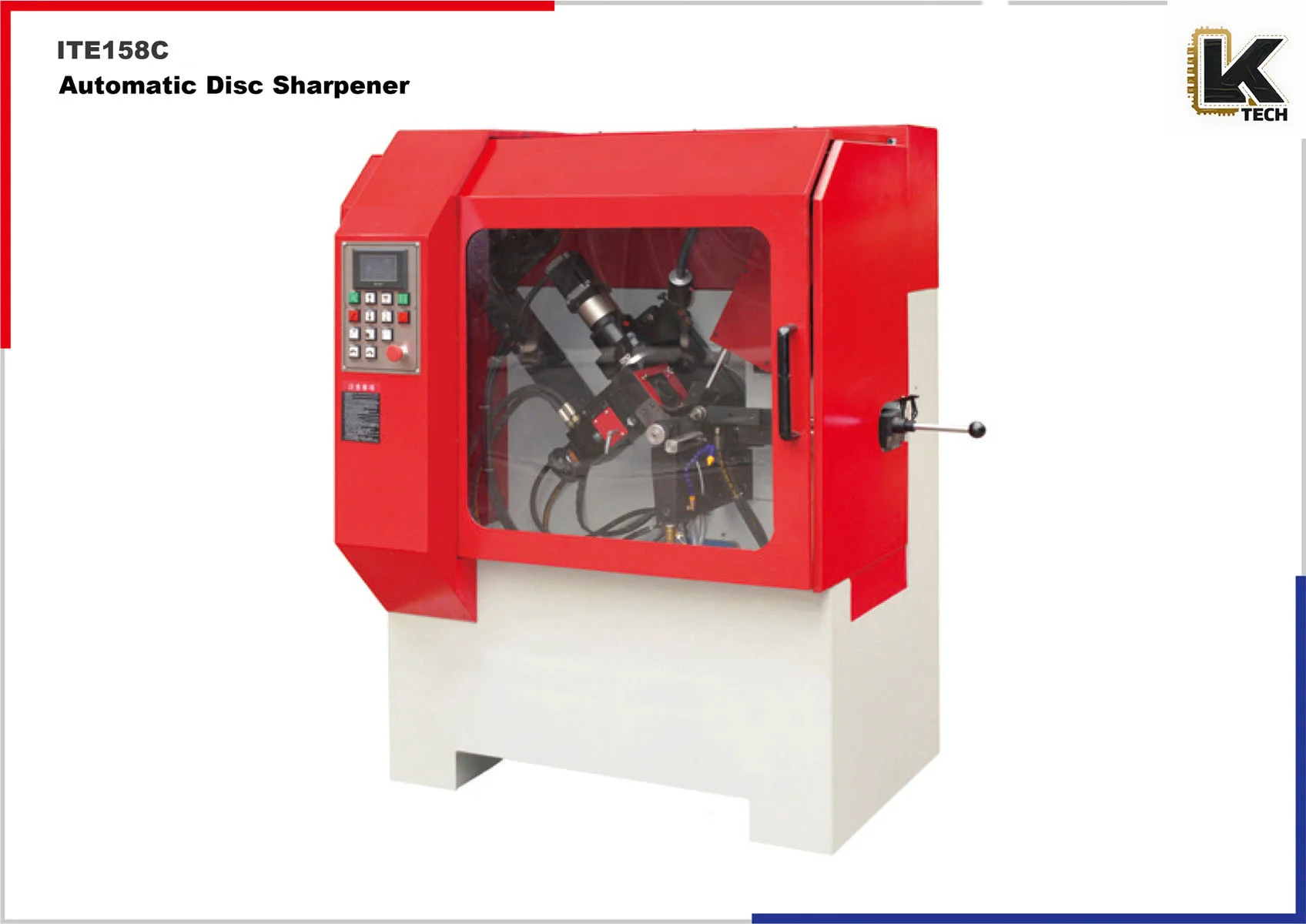

Automatic Disc Sharpener ITE158 & ITE158C: Revolutionizing Cutting Tool Maintenance

Introduction

In the fast-paced world of manufacturing and metalworking, maintaining cutting tools to ensure their peak performance is of paramount importance. The Automatic Disc Sharpener ITE158 and ITE158C is a state-of-the-art solution designed to provide comprehensive sharpness maintenance through advanced technology, ensuring that your cutting tools consistently operate at their best. With a blend of automation and precision engineering, these machines are engineered to easily tackle the intricate task of sharpening disc blades used in various applications.

Key Features

  1. Automated Precision: The ITE158 and ITE158C models are equipped with advanced automation features, eliminating human error and ensuring consistent, repeatable results with every sharpen.

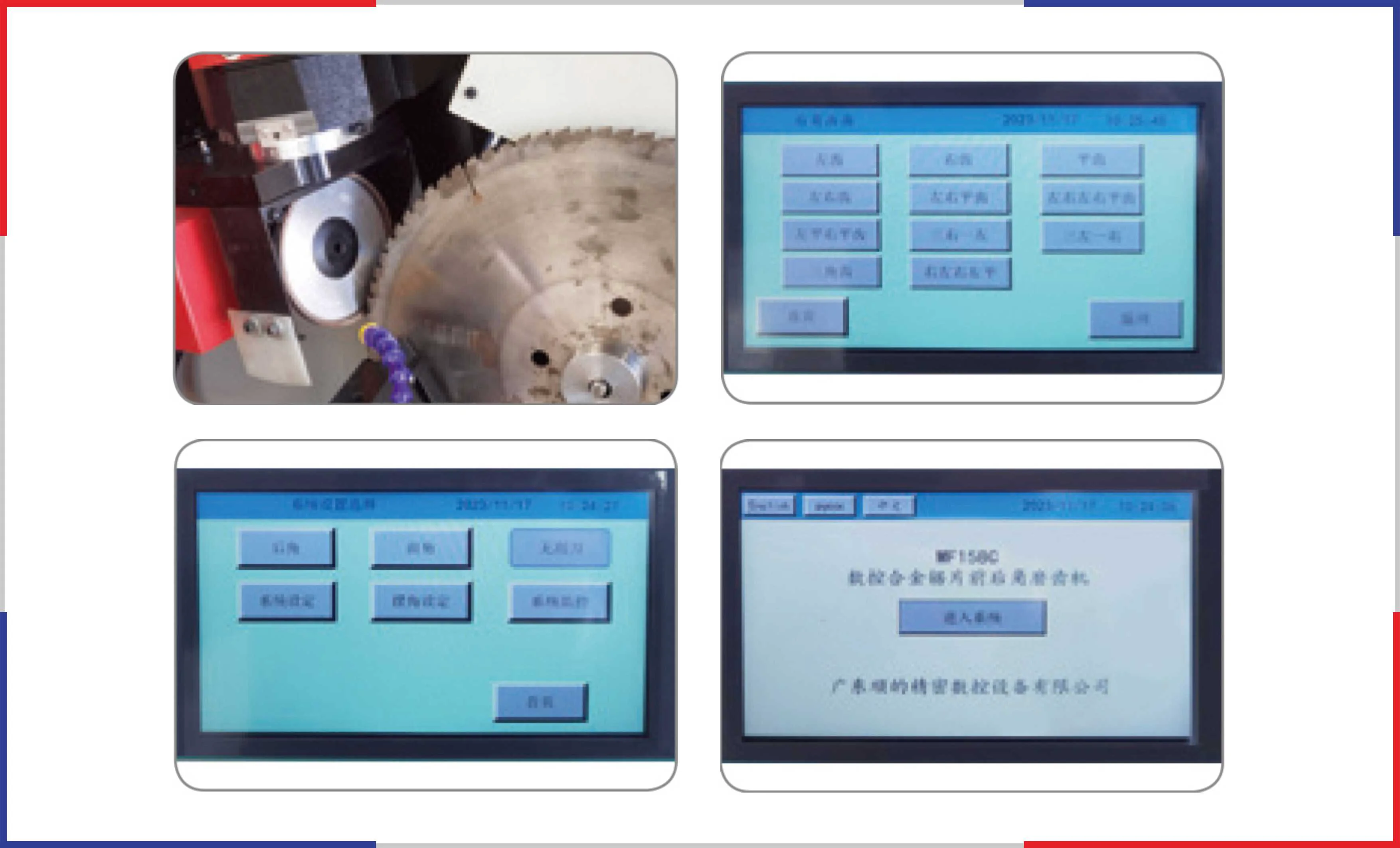

  2. User-Friendly Interface: Both models feature intuitive touchscreen controls that allow operators to easily navigate through different settings and sharpening programs. This ensures quick setup and ease of use for technicians of all skill levels.
  3. Versatile Compatibility: Capable of sharpening saw blades ranging between Φ80 to Φ800mm, the ITE158 and ITE158C handle various blade sizes, making them indispensable for workshops with diverse tool inventories.
  4. Robust Motor Power: With a main motor power of 1.5 kW for ITE158 and 1.7 kW for ITE158C, combined with a water pump power of 90W, these machines deliver efficient, high-speed sharpening performance while maintaining the integrity and longevity of cutting tools.
  5. Adjustable Sharpening Parameters: The flexibility to adjust parameters such as saw teeth speed (20 t/min) and maximum sawtooth depth (up to 8 mm for ITE158C) ensures that your saw blades receive a customized sharpening experience tailored to each project’s needs.
  6. Enhanced Depth Control: The machines feature a maximum sawtooth depth capability of up to 8 mm, allowing for a thorough sharpening of even the most worn-out blades.
  7. Detailed Angle Settings: Both models come equipped with adjustable angles for tooth face put (-20° to -40°) and after further angle (6° to -45°), enhancing the accurate reshaping of saw teeth.
  8. Rugged Construction: Built with industrial-grade materials, the robust design and heavy-duty components create a durable tool that is built to withstand the everyday demands of a busy workshop.

Technical Specifications

  • ITE158 Specifications:

    Machine Parameters Specifications
    Main Motor Power 1.5Kw
    Water Pump Power 90w
    Burns Trip 0–25mm
    Speed Dial The Tooth 20 t/Min
    Diameter Of Grinding Saw Blade Φ80–Φ800mm
    Max Sawtooth Depth 7mm
    Tooth Face Cut Angle –20°–40°
    After Further Angle 6°–45°
    Top Gear Set Angle ±45°
    Grinding Wheel Specification Φ32(16)×Φ125mm
    Size 1300×800×1650mm
    Weight 500KG

  • ITE158C Specifications:

    Machine Parameters Specifications
    Main Motor Power 1.7Kw
    Water Pump Power 90w
    Burns Trip 0–25mm
    Speed Dial The Tooth 20 t/Min
    Diameter Of Grinding Saw Blade Φ80–Φ800mm
    Max Sawtooth Depth 8mm
    Front Angle Swing –20°–40°
    After Further Angle 6°–45°
    Top Gear Set Angle ±45°
    Grinding Wheel Specification Φ32(16)×Φ125mm
    Size 1700×1280×1900mm
    Weight 960KG

Benefits

  1. Increased Productivity: The automated processes reduce the time spent on blade maintenance, allowing your team to focus more on production while ensuring that tools stay in optimal cutting condition.
  2. Cost Savings: By prolonging the lifespan of cutting tools through meticulous sharpening, manufacturers can significantly decrease costs associated with blade replacement and maintenance.
  3. Improved Cutting Performance: Sharp blades produce cleaner cuts, minimizing material waste and ensuring high-quality finishes, which are crucial for maintaining client satisfaction and competitiveness.
  4. Easy Operation: The modern interface and straightforward controls make it easier for users to operate the machines, decreasing training time and boosting overall workshop efficiency.
  5. Durability and Reliability: The solid construction ensures that both the ITE158 and ITE158C are capable of withstanding harsh workshop environments, making them reliable investments for businesses big and small.

Conclusion

The ITE158 and ITE158C Automatic Disc Sharpeners represent a significant advancement in the maintenance of cutting tools. Their combination of automated efficiency, robust design, and user-friendly technology makes them indispensable to any workshop focused on quality, performance, and cost-effectiveness. By investing in these sharpeners, businesses can ensure that their tools remain in peak condition, ultimately leading to better output quality, reduced operational costs, and increased productivity.

With the ITE158 and ITE158C, you can effortlessly enhance your operations and stay ahead in the competitive landscape of manufacturing. Invest in excellence today with the ultimate sharpener for your disc blades!
