The Advanced Bending Machine: The Ultimate Solution for Precision Metal Forming

Overview

In the world of metalworking, the importance of precision and efficiency in shaping materials cannot be overstated. Enter the Advanced Bending Machine, a state-of-the-art tool designed to transform metal sheets into intricately shaped components with unparalleled accuracy. Whether you are a metalworking professional in manufacturing, fabrication, or construction, this versatile bending machine is crafted to fulfill all your bending requirements while enhancing production quality and efficiency.

Design and Build

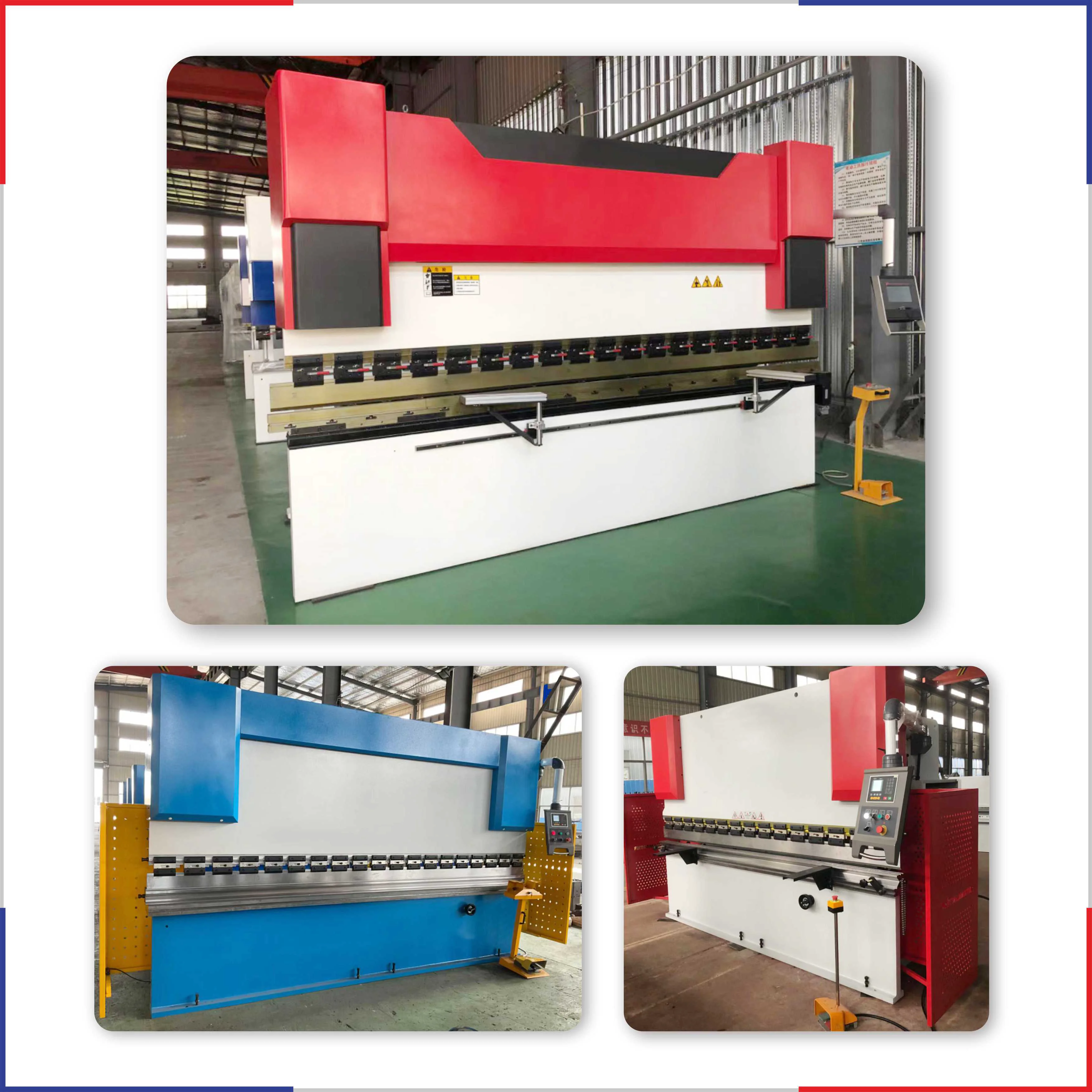

This Bending Machine embodies the fusion of cutting-edge technology and robust engineering, featuring a sleek, modern exterior that fits seamlessly into any industrial environment. Its aesthetic appeal is characterized by a combination of vibrant colors such as striking blue and bold red that not only serve as an eye-catching feature but are also designed with ergonomics and usability at the core.

The sturdy build ensures long-lasting durability with minimal maintenance. Made from high-quality materials, the machine is positioned to withstand the varying demands of metal fabricating tasks. Each component is meticulously crafted to ensure an outstanding balance of strength and flexibility, enabling smooth operation under high load conditions.

Technical Specifications

The Advanced Bending Machine boasts an impressive range of specifications catered to different operational needs. Here is a look at some of the critical specifications that set the machine apart:

  • Nominal Pressure: Ranges from 400 kN to 5000 kN, providing ample force for bending a variety of metal thicknesses.
  • Length of Working Table: Available in lengths from 2000 mm to 6000 mm, accommodating different sizes of materials.
  • Distance Between Uprights: Configurable between 1590 mm to 3200 mm, which allows working with various widths of sheets.
  • Throat Depths: Ranging from 200 mm to 320 mm, the machine can tackle both simple and complex bending operations.
  • Ram Stroke: Adjustments from 100 mm to 320 mm, providing versatility for different bending angles and shapes.
  • Motor Power: Efficient energy consumption with options starting from 4 kW, ensuring eco-friendly operations without compromising on performance.
  • Maximum Opening Height: With heights reaching up to 520 mm, the machine is designed to accommodate thicker or additional layers of materials during bending.
  • Overall Dimensions: Customizable dimensions to fit your workspace without compromising functionality.
Model Nominal Pressure (kN) Length of Working Table (mm) Distance Between Uprights (mm) Throat Depths (mm) Ram Stroke (mm) Motor Power (kW) Ram Stroke Power (kW) Rear Bumper Power (kW) Maximum Opening Height (mm) Gear Pump Model Overall Dimensions (mm)
ITE-WC40/2000 400 2000 1500 200 100 4 0.18 0.55 340 NT2-G10F 2500×1300×1800
ITE-WC40/2500 400 2500 2000 200 100 4 0.18 0.55 340 NT2-G10F 3100×1300×1800
ITE-WC63/2500 630 2500 2050 250 100 5.5 0.18 0.55 360 NT3-G16F 3000×1700×2300
ITE-WC63/3200 630 3200 2600 250 100 5.5 0.18 0.55 360 NT3-G16F 3700×1700×2300
ITE-WC80/3200 800 3200 2600 250 100 7.5 0.18 0.55 360 NT3-G20F 3700×1900×2300
ITE-WC80/4000 800 4000 3200 250 100 7.5 0.18 0.55 360 NT3-G20F 4560×1900×2400
ITE-WC100/2500 1000 2500 2050 320 120 7.5 0.18 0.55 380 NT3-G25F 3000×1600×2400
ITE-WC100/3200 1000 3200 2600 320 120 7.5 0.18 0.55 380 NT3-G25F 3700×1600×2400
ITE-WC100/4000 1000 4000 3200 320 120 7.5 0.18 0.55 380 NT3-G25F 4500×1700×2400
ITE-WC125/3200 1250 3200 2600 320 130 7.5 0.18 0.55 380 NT3-G25F 3700×1700×2400
ITE-WC125/4000 1250 4000 3200 320 130 7.5 0.18 0.55 380 NT3-G25F 4500×1800×2400
ITE-WC160/3200 1600 3200 2600 320 200 11 0.18 0.55 470 NT3-G25F 3700×2000×2600
ITE-WC160/4000 1600 4000 3200 320 200 11 0.18 0.55 470 NT3-G25F 4500×2000×2600
ITE-WC160/5000 1600 5000 4000 320 200 15 0.18 0.55 470 NT3-G25F 5500×2000×3300
ITE-WC160/6000 1600 6000 4800 320 200 15 0.18 0.55 470 NT3-G25F 6500×2000×3300
ITE-WC200/3200 2000 3200 2600 320 200 15 0.18 0.55 470 NT3-G25F 3700×2000×2600
ITE-WC200/4000 2000 4000 3200 320 200 15 0.18 0.55 520 NT3-G25F 4500×2000×3000
ITE-WC200/5000 2000 5000 4000 320 200 15 0.18 0.55 470 NT3-G25F 6500×2000×3500
ITE-WC200/6000 2000 6000 4800 320 200 15 0.18 0.55 470 NT3-G25F 3700×1900×2600
ITE-WC250/3200 2500 3200 2600 400 250 18.5 0.18 0.55 470 NT3-G40F 4500×1900×2600
ITE-WC250/4000 2500 4000 3200 400 250 18.5 0.18 0.55 550 NT4-G40F 4500×1900×2600
ITE-WC250/5000 2500 5000 4000 400 250 18.5 0.18 0.55 550 NT4-G40F 6500×1900×3500
ITE-WC250/6000 2500 6000 4800 400 250 18.5 0.18 0.55 560 NT4-G50F 3700×2200×3000
ITE-WC300/3200 3000 3200 2600 400 250 22 0.18 0.55 560 NT4-G50F 4500×2200×4200
ITE-WC300/4000 3000 4000 3200 400 250 22 0.18 0.55 560 NT4-G50F 4500×2200×4200
ITE-WC300/5000 3000 5000 4000 400 250 22 0.18 0.55 560 NT4-G50F 6500×2250×3800
ITE-WC300/6000 3000 6000 4800 400 250 22 0.18 1.1 630 NT4-G3F 3700×2300×3500
ITE-WC400/3200 4000 3200 2600 400 320 22 0.18 1.1 630 NT4-G63F 4500×2300×3500
ITE-WC400/4000 4000 4000 3200 400 320 22 0.18 1.1 630 NT4-G63F 4500×2300×3500
ITE-WC400/5000 4000 5000 4000 400 320 22 0.18 1.1 630 NT4-G63F 6500×2300×5000
ITE-WC400/6000 4000 6000 4800 400 320 22 0.18 1.1 630 NT4-G63F 4500×2300×5000
ITE-WC500/3200 5000 3200 2600 400 320 37 0.25 1.1 630 NT4-G63F 3700×2300×3900
ITE-WC500/4000 5000 4000 3200 400 320 37 0.25 1.1 630 NT4-G63F 4500×2500×4500

This machine features a user-friendly interface that allows operators of all skill levels to program and monitor the bending process effortlessly. Various bends and shapes can be pre-programmed, ensuring consistency and reducing labor costs.

Key Features

  1. Advanced Control System: The integrated control panel features a user-friendly touchscreen interface that simplifies the process of programming bend angles, lengths, and sequences. The digital display allows operators to monitor real-time performance and adjusts settings on the go.
  2. High Precision Bending: The machine is engineered for high precision, utilizing advanced motion technology that ensures precise bending angles and minimal tolerance. This feature is crucial for industries demanding strict specifications.
  3. Variable Speed Operation: Optimize your production throughput with adjustable speed settings that allow the operator to choose the best speed based on the material and thickness, enhancing efficiency without sacrificing quality.
  4. Bending Tool Compatibility: The Advanced Bending Machine is compatible with a range of tools and dies. This versatility empowers operators to produce various parts, enhancing the machine’s usefulness across multiple sectors.
  5. Safety Features: Prioritizing operator safety, the machine is outfitted with numerous safety mechanisms such as emergency stop buttons, light curtains, and guard panels. These features ensure that the manufacturing process runs smoothly while maintaining a focus on safety.
  6. Energy Efficiency: The machine is designed with energy-efficient technologies that minimize power consumption while maximizing output. This sustainable design aligns with the increasing demand for eco-friendly operations across industries.

Application Areas

The Advanced Bending Machine caters to a variety of industries making it a must-have for any fabrication workshop, including:

  • Automobile Manufacturing: Create structural components and body parts with precision, elasticity, and aesthetic appeal.
  • Construction: Fabricate essential components, such as brackets, railings, and supports for building structures.
  • Sheet Metal Fabrication: Perfect for creating customized designs and prototypes, enabling rapid design iteration.
  • HVAC Manufacturing: Bend ducts and enclosures for ventilation systems ensuring efficiency in air distribution.
  • Home Appliances: Produce casing and interior structure components for durability and functionality of appliances.

Why Choose Our Bending Machine?

When investing in a bending machine, you need assurance of quality, reliability, and great customer support. Our Advanced Bending Machine offers:

  • Proven Performance: Track record of high performance in various applications, making it a trusted choice for fabricators.
  • Customization Options: Tailored solutions to fit the unique challenges and requirements of your production line.
  • Technical Support: Our highly trained and proficient team is dedicated to providing ongoing support, ensuring the machine operates at peak performance levels.
  • Warranty and Maintenance Plans: Long-term service agreements and warranties to safeguard your investment with peace of mind.

Customer Testimonials

“The Advanced Bending Machine changed the game for our operations. The increase in efficiency and reduction in waste has been remarkable. Our precision has improved drastically, and our clients are happier than ever!” - John D., Operations Manager.

“We started using the bending machine last year, and the quality of bends achieved is incredible. It has made complex production runs so much easier and faster.” - Sarah T., Sheet Metal Fabricator.

Conclusion

The Advanced Bending Machine is not just a tool; it’s an investment in quality, efficiency, and innovation in metal forming. Whether you are producing small-batch prototypes or large-scale production runs, this machine is designed to enhance your manufacturing capabilities.

If you are ready to elevate your operations with state-of-the-art bending technology, reach out to us today! Our team is excited to help transform your metalworking tasks into extraordinary production experiences. Experience the synergy of speed, precision, and durability – with the Advanced Bending Machine by your side.

For more details, inquiries, or a demo, please contact our sales team, and together we can create effective solutions that meet your needs.
