Circle Saw Blade Grinding Machine ITE127B

Introduction

The Circle Saw Blade Grinding Machine ITE127B is a high-performance, precision grinding solution designed for professionals in woodworking, metalworking, and other industries requiring the maintenance and sharpening of circular saw blades. This innovative machine showcases state-of-the-art technology, offering unparalleled versatility and reliability. Whether you are a small workshop or a large manufacturing facility, the ITE127B is your go-to equipment for enhancing the longevity and performance of your saw blades.

Technical Specifications

• Diameter of Grinding Saw Blade: Compatible with a wide range of blade diameters, from Ø 105 mm to Ø 450 mm.
• Applicable Grinding Saw Blade Aperture: Designed to accommodate apertures of various sizes including Ø 20, Ø 22, Ø 25.4, Ø 30, Ø 40, and Ø 50 mm.
• Maximum Sawtooth Depth: Capable of grinding up to a maximum depth of 8 mm, ensuring that even heavily worn blades are restored effectively.
• Grinding Wheel Specifications: The machine uses grinding wheels sized Ø 32 (16)*Ø 125, offering precise sharpening capabilities.
• Grinding Wheel Spindle Rotate Speed: Operates at an impressive speed of 4800 rpm, ensuring efficient and thorough blade sharpening.
• Motor Power: The grinding wheel motor is robust, delivering 550 W of power, complemented by a feed motor power of 60 W for efficient operation.
• Electric Power Speed: Adjustable feed rates from 1° to 36° per tooth/min, allowing for customized grinding based on blade specifications.
• Overall Dimensions: The machine measures 1100 mm x 750 mm x 1360 mm, making it compact enough for shop use while still delivering powerful performance.

Key Features

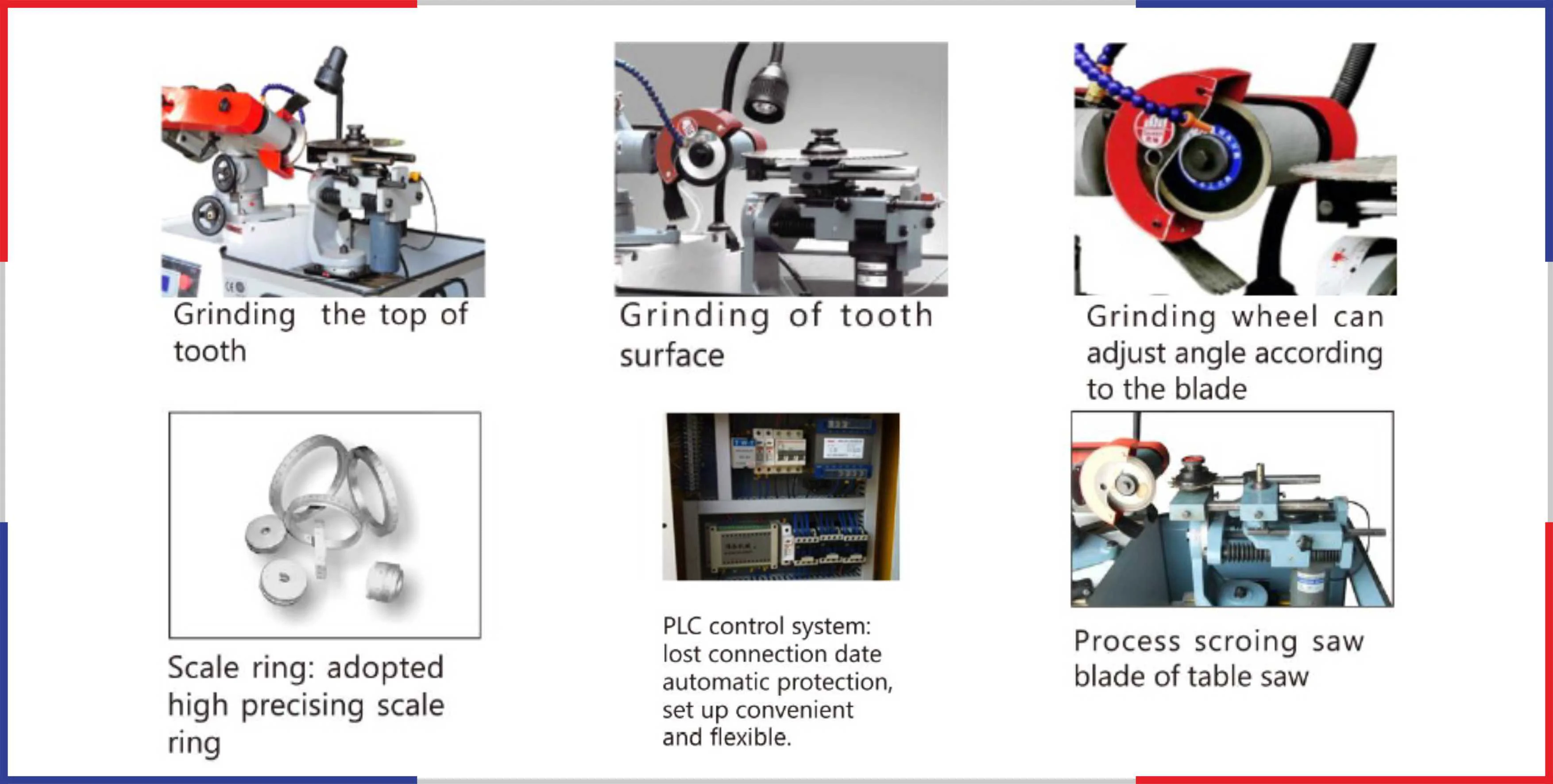

1. Versatile Grinding: The ITE127B can perform various grinding tasks, including the top of the tooth and the grinding of tooth surfaces. This versatility makes it suitable for a diverse range of blade types and sizes.
2. Adjustable Grinding Wheel: The grinding wheel can adjust its angle based on the specific requirements of the blade being sharpened. This feature enhances precision and helps maintain the integrity of the blade’s cutting edge.
3. User-Friendly Control System: Equipped with an advanced PLC (Programmable Logic Controller) system, the machine offers reliable operation with features such as automatic data protection against power loss. This ensures setup is convenient and flexible, allowing operators to focus on performance.
4. High Precision Scale: The ITE127B incorporates high-precision scale rings that enhance measurement accuracy. This precision is vital for maintaining blade quality, ultimately leading to better cutting performance.
5. Process Scoring Saw Blades: Specifically designed to cater to the needs of table saw operators, the ITE127B can process scoring saw blades, extending the machine’s utility.
6. Enhanced Safety Features: Emphasizing safety, the machine incorporates several protective mechanisms designed to safeguard users during operation.

Benefits of Using the ITE127B

• Cost-Effective Blade Maintenance: The ability to sharpen blades in-house reduces the need for external sharpening services. This results in lower operational costs and increased profitability.
• Improved Cutting Efficiency: Regularly sharpened blades ensure optimal cutting performance. This means cleaner cuts, less strain on machinery, and extended tool life.
• User-Friendly Operation: Designed for ease of use, operators, regardless of their experience, will find the ITE127B straightforward to operate, minimizing the learning curve.
• Durability and Reliability: Constructed with high-quality materials and sophisticated engineering, this grinding machine promises longevity and consistent performance.

Applications

The Circle Saw Blade Grinding Machine ITE127B is ideal for various applications, making it a valuable addition to:

• Woodworking Shops: Perfect for maintaining a range of woodcutting blades, ensuring top-tier carpentry results.
• Metalworking Facilities: This machine can handle metal cutting blades, contributing to high-quality metal fabrication.
• Manufacturing Plants: In high-volume manufacturing settings, regular blade maintenance is crucial. The ITE127B meets the demands of such environments effectively.
• Tool Rental Services: Rental companies offering saw blades will benefit from the reliable sharpening capabilities of this machine, enhancing customer satisfaction.

Specifications

Conclusion

The Circle Saw Blade Grinding Machine ITE127B stands out as an essential tool for professionals who value precision, efficiency, and cost-effectiveness in saw blade maintenance. With its exceptional features, robust construction, and user-friendly interface, this machine is designed to meet the demanding needs of various industries, including woodworking, metalworking, and manufacturing. Investing in the ITE127B not only improves the life and performance of your saw blades but also enhances overall operational efficiency. Whether you are looking to improve your workshop’s productivity or enhance the quality of your services, the ITE127B is the perfect solution for all your blade sharpening requirements. Experience the difference with the ITE127B and elevate your craftsmanship to a higher standard.
