Electric Sparkel CBN Sharpener ITE570-CNC: The Pinnacle of Precision Tool Sharpening

In the competitive world of manufacturing and machining, precision is paramount, and the Electric Sparkel CBN Sharpener ITE570-CNC exemplifies this requirement flawlessly. This powerful tool is engineered to meet the demands of modern workshop environments, providing robust solutions for sharpening and maintaining the integrity of cutting tools with utmost efficiency and accuracy.

Overview

The ITE570-CNC is a state-of-the-art Electric Sparkel CBN (Cubic Boron Nitride) Sharpener designed for both industrial and commercial use. It integrates advanced technology and user-friendly interfaces to offer a comprehensive sharpening solution for high-performance tools, especially circular saw blades, turning tools, and other cutting devices. With its precision CNC (Computer Numerical Control) capabilities, this sharpener is redefining what users can expect from tool maintenance equipment.

Key Features

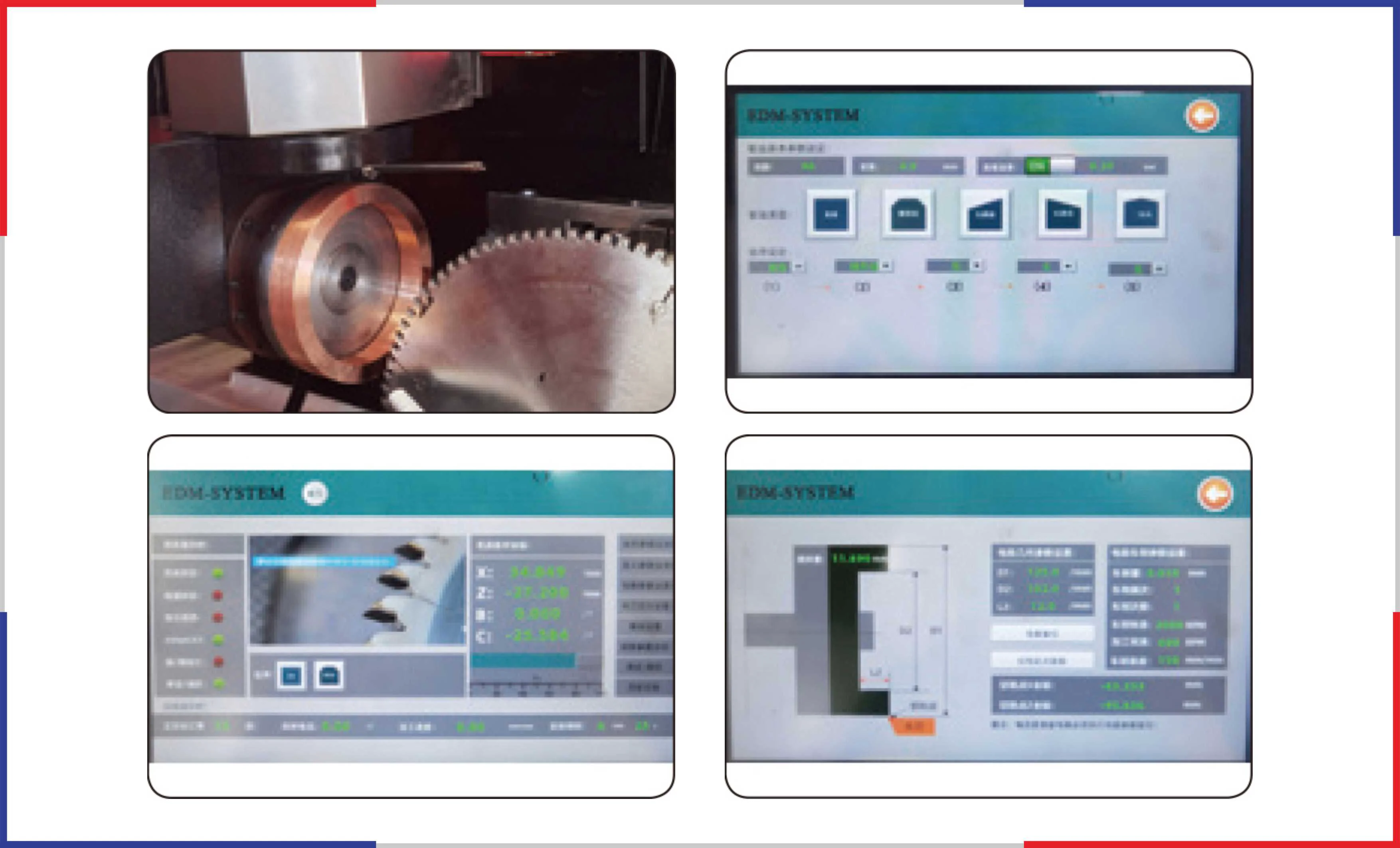

  1. Precision Control System: The ITE570-CNC boasts an intuitive control panel equipped with touch-screen functionality, enabling operators to navigate its features effortlessly. The EDM system enhances the pushing and pulling operations via adjustable servo drives, facilitating the precise control of the sharpening process.
  2. Robust Build: Constructed with a focus on durability, the machine features a solid frame designed to endure the rigors of a busy manufacturing environment. Its streamlined body not only enhances the machine’s aesthetic appeal but also minimizes vibration, ensuring consistent sharpening results.
  3. Versatile Sharpening Capability: This machine is designed to accommodate a variety of blade sizes ranging from Φ150 to Φ600 mm, making it perfect for businesses utilizing multiple tool types. Its grinding saw blade aperture of Φ20 to Φ50 mm allows for further customization to meet specific operational needs.
  4. High-Speed Operation: Powered by a 4.5 kW main motor and capable of running at speeds up to 2800 rpm, the ITE570-CNC offers rapid sharpening cycles, significantly improving productivity. The feed motor power of 450W-1Pcs, 750W-1Pcs, and 1kW-2Pcs provides flexibility in managing different sharpening tasks without compromising quality.
  5. Advanced Copper Wheel Technology: The sharpener uses specialized copper wheels that rotate at optimal speeds to achieve precise and efficient sharpening results. The max sawtooth depth of 8 mm ensures that even the most worn-out blades can be refurbished to their original specifications.
  6. User-Friendly Interface: The incorporation of a graphical interface with real-time data displays makes configuring settings straightforward. Operators can easily adjust parameters like tooth speed and depth of blade sharpening with just a few clicks, reducing the likelihood of operational errors.
  7. Compact Design: With dimensions of 1680 x 1600 x 2020 mm, the ITE570-CNC is designed to save space in your workshop while still delivering powerful performance. Its compact size allows for efficient placement alongside other machinery without overwhelming the workspace.
  8. Safety Features: Designed with user safety in mind, the ITE570-CNC includes protective covers and safety interlocks that prevent accidental exposure to moving parts, making it a reliable choice for busy environments.
  9. Weight Capacity: Weighing in at 680 kg, this sharpener is stable and can withstand rigorous operation without shifting or vibrating, ensuring safe and accurate sharpening.

Specifications:

Machine Parameters Specifications
Name 4.5 kW
Main Motor Power 750 W
Water Pump Power 450 W–1pcs/750 W–1pcs/1 kW–2pcs
Feed Motor Power Adjustable Servo Drive
Speed Dial The Tooth Ø150–Ø600 mm
Diameter Of Grinding Saw Blade Ø20–Ø22–Ø25.4–Ø30–Ø40–Ø50 mm
Grinding Saw Blade Aperture 8 mm
Max Sawtooth Depth 2800 r/min
Copper Wheel Speed Ø125 mm
Copper Wheel Specifications ±45°
Angle of Rotation of Grinding Head 1680×1600×2020 mm
Size 680 kg

Performance Benefits

Enhanced Tool Longevity

The ITE570-CNC sharpener plays a crucial role in extending the life of cutting tools. Regular sharpening with precision technology helps retain the geometry of cutting edges, resulting in prolonged tool life and a reduced need for costly replacements.

Cost Efficiency

Investing in an electric sharpener like the ITE570-CNC translates to substantial long-term savings. By sharpening tools in-house, businesses can decrease their operational costs related to tool purchases and downtime, thus enhancing overall profitability.

Increased Productivity

With rapid sharpening cycles and easy-to-use settings, the ITE570-CNC minimizes tool downtime and maximizes productivity. Operators can quickly sharpen multiple tools and get back to machining tasks, ensuring that operations run smoothly without significant interruptions.

Consistent Quality

The CNC technology ensures uniform results with every sharpening process. By eliminating human error typically associated with manual sharpening methods, the ITE570-CNC guarantees consistent output that meets high industry standards.

Application Areas

The ITE570-CNC is ideally suited for various industries, including:

  • Manufacturing: Suitable for workshops involved in the production of wooden and metal products, allowing for efficient blade maintenance.
  • Construction: Ideal for contractors who require durable saw blades that maintain their cutting efficiency.
  • Metalworking: Perfect for tool shops needing high-precision grinding for cutting tools that handle tough materials.
  • Woodworking: A vital asset for carpentry and woodworking shops where tool sharpness directly impacts the quality of the finished product.

Conclusion

The Electric Sparkel CBN Sharpener ITE570-CNC is an essential solution for any workshop or manufacturing facility seeking to enhance the performance and longevity of cutting tools. With its advanced features, robust build, and efficiency, this sharpener stands at the forefront of tool sharpening technology. Engineers, machinists, and tradespeople will find its intuitive operation, combined with reliable performance, instrumental in maintaining blade sharpness and improving the overall quality of work produced.

Investing in the ITE570-CNC sharpener not only enhances the current operational environment but also positions your business for future growth by ensuring that high standards of tools remain accessible at all times. Make the smart choice for your sharpening needs—choose the ITE570-CNC Electric Sparkel CBN Sharpener and take your tool maintenance to the next level.
