Electric Sparkel Sharpener ITE53-CNC & ITE54-CNC

Overview:

The Electric Sparkel Sharpener ITE53-CNC and ITE54-CNC are advanced precision sharpening machines designed to meet the needs of modern machining environments. These innovative machines cater to the complex requirements of tool sharpening and maintain exceptional reliability and efficiency. Both models are engineered with robust construction, advanced technology, and user-friendly interfaces, making them indispensable for manufacturers seeking high-quality sharpening solutions.

Key Features:

1. Robust Design and Durability:

  • Both models feature a heavy-duty construction ensuring stability and long operational life. The ITE53-CNC weighs 2.2 tons, while the ITE54-CNC is slightly heavier at 3.6 tons. This substantial weight helps minimize vibrations during operation, ensuring high precision and consistency in sharpening tasks.

2. Superior Sharpening Capabilities:

  • Each model boasts powerful performance with a total power rating of 6kW, providing enough strength for efficient sharpening of a variety of tools. This power is pivotal for handling tough materials and achieving high-quality finishes.

3. Precision Movement:

  • The machines offer exceptional axis travel—130mm for the X-axis, 350mm for the Y-axis, and 350mm for the Z-axis in the ITE53-CNC; while the ITE54-CNC allows for movements of 220mm, 380mm, and 500mm respectively. This versatility enables users to sharpen larger tools while maintaining tight tolerances.

4. Ultra-Small Spindle Runout:

  • With a spindle runout of less than 0.01mm for both models, these sharpeners excel in producing precision tools without compromising on the quality of the sharpening process. This level of accuracy is crucial for generating sharp cutting edges that can enhance the overall performance of the tools.

5. Automated Operation:

  • Equipped with CNC (Computer Numerical Control) technology, both the ITE53-CNC and ITE54-CNC incorporate advanced programming capabilities, permitting automatic operation for complex sharpening tasks. This reduces the required manual effort and allows for high repeatability in tool sharpening.

6. Versatile Tool Compatibility:

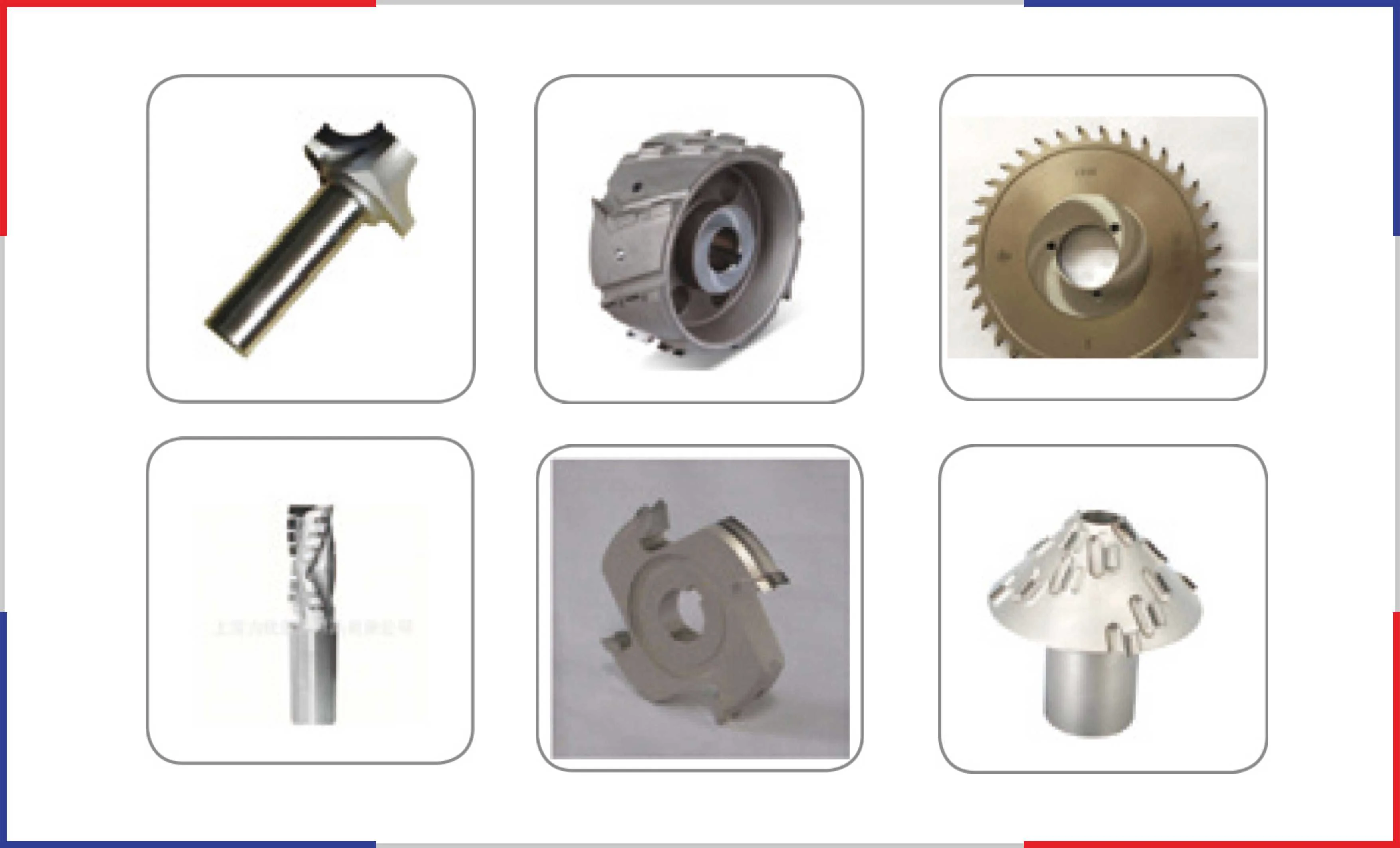

  • These sharpeners can handle a wide range of tool types, including but not limited to end mills, drills, and cutting tools. The maximum electrode diameter for the ITE53-CNC is 150mm, while the ITE54-CNC supports tools up to 200mm in diameter. This versatility makes these machines suitable for various industries, including automotive, aerospace, and general manufacturing.

7. Processing Speed:

  • The sharpening speed ranges from 2mm/min to 3mm/min, allowing for efficient operations without sacrificing the quality of the finish. This processing speed is adjustable based on the specific requirements of different materials or tool geometries.

8. User-Friendly Interface:

  • Both models come with a comprehensive control panel featuring a user-friendly interface that allows for easy operation and programming. This design minimizes the learning curve for new users while optimizing workflow for experienced operators.

Technical Specifications:

ITE53-CNC Specifications:

  • Total Weight: 2.2T
  • Total Power: 6kW
  • Countertop: 450mm x 500mm
  • Travel of X, Y, Z axes: 130mm / 350mm / 350mm
  • Spindle Runout: <0.01mm
  • Base Swing Angle: 0-45°
  • Spark Oil: 4-10 CST
  • Machine Dimensions: 1650mm x 1650mm x 2160mm
  • Max Electrode Diameter: 150mm
  • Max Grindable Tool Length: 160mm
  • Max Grindable Tool Diameter: 250mm
  • Max Machinable Current and Voltage: 15A / 300V
  • Processing Speed: 2mm/min - 3mm/min
  • Machining Tool Runout: <0.03 (<0.01)
  • Machining Tool Finish: 0.2

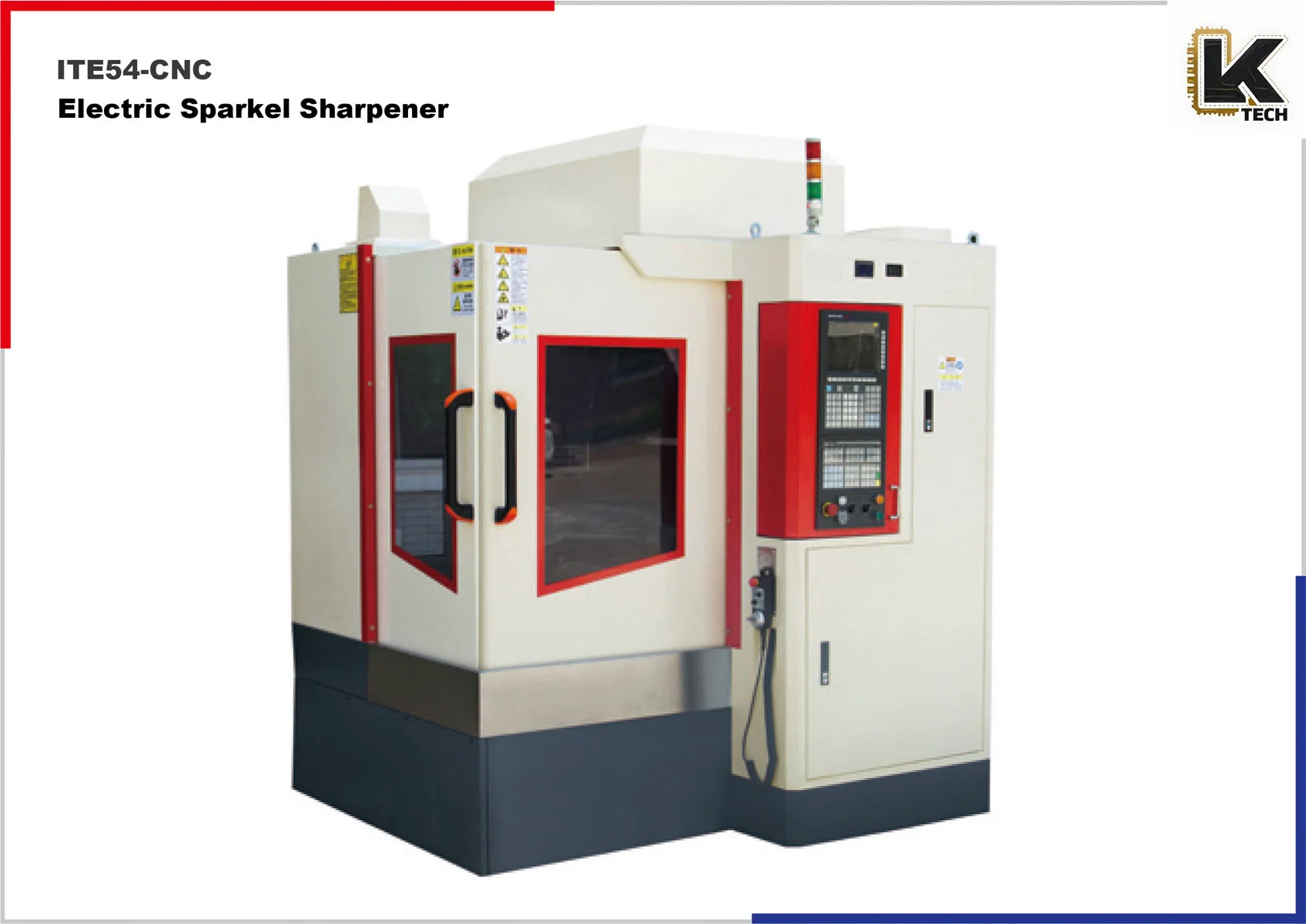

ITE54-CNC Specifications:

  • Total Weight: 3.6T
  • Total Power: 6kW
  • Countertop Dimensions: 500mm L x 600mm W
  • Travel of X, Y, Z axes: 220mm / 380mm / 500mm
  • Spindle Runout: <0.01mm
  • Base Swing Angle: 0-45°
  • Spark Oil: 4-10 CST
  • Machine Dimensions: 1990mm x 1990mm x 2150mm
  • Max Electrode Diameter: 200mm
  • Max Grindable Tool Length: 200mm
  • Max Grindable Tool Diameter: 300mm
  • Processing Speed: 2mm/min - 3mm/min
  • Machining Tool Runout: <0.03 (<0.01)
  • Machining Tool Finish: 0.2

Applications:

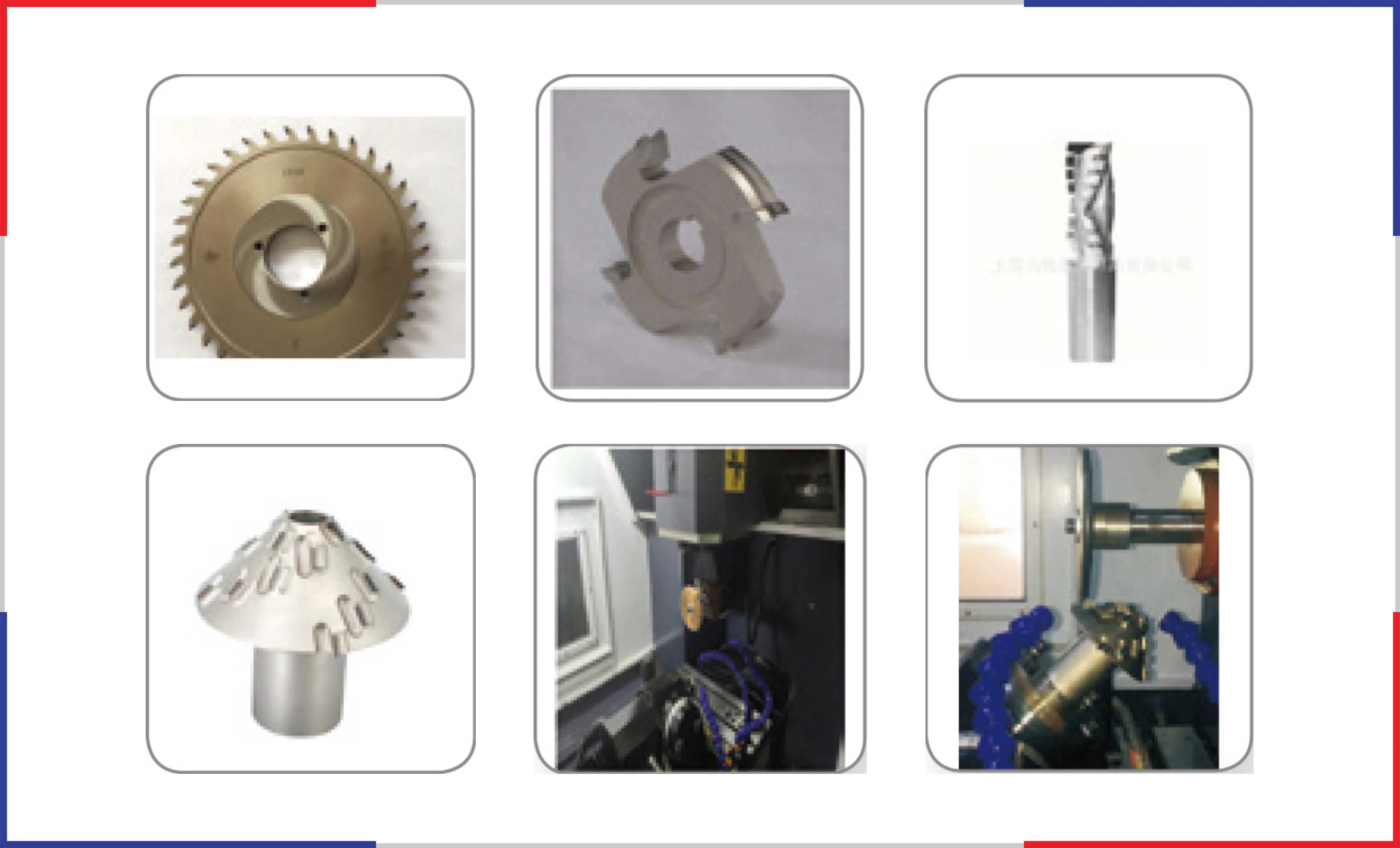

The Electric Sparkel Sharpeners ITE53-CNC and ITE54-CNC are specifically designed for the sharpening of various cutting tools and electrodes. Their applications include but are not limited to:

  • Manufacturing: Ideal for tool sharpening in workshops where precision tools are essential for production.
  • Automotive: Perfect for making and maintaining sharp cutting tools for automotive component manufacturing.
  • Aerospace: Essential for aerospace engineering, where high precision tools are necessary for fabrication and assembly.
  • Medical Device Fabrication: Due to their precision capabilities, perfect for tools that require meticulous sharpening to ensure high-quality finishes.

Conclusion:

The ITE53-CNC and ITE54-CNC Electric Sparkel Sharpeners are highly efficient, precise, and versatile machines designed to meet the sharpening needs of contemporary manufacturing. Their robust construction, user-friendly interface, and advanced technological features make them essential tools for any workshop focused on maintaining high-quality cutting tools. By incorporating these sharpeners into your operations, you ensure optimal tool performance, increases in productivity, and reductions in operational costs—the perfect commitment to excellence in machining!
