ITE54-CNCPG Multi-axis Sharpener: Precision Meets Versatility

In the dynamic world of manufacturing and machining, the importance of precision sharpening tools cannot be overstated. Enter the ITE54-CNCPG Multi-axis Sharpener—a groundbreaking advancement in tool sharpening technology. This machine is engineered to meet the demanding requirements of today’s industries, ensuring that your cutting tools remain sharp, efficient, and ready to perform.

Overview

The ITE54-CNCPG is not just any sharpener; it is a sophisticated multi-axis CNC (Computer Numerical Control) machine designed specifically for the sharpening and maintenance of various cutting tools. Whether you’re dealing with end mills, drill bits, or other essential cutting instruments, the ITE54-CNCPG is equipped to handle them all with efficiency and precision.

The machine is built with durability in mind. Weighing in at 2.2 tons, the solid construction guarantees stability during operation, thus enhancing the quality of the sharpening process. With a powerful 13kW motor, the sharpener ensures that it can handle even the toughest materials with ease, maintaining high-performance levels across different workloads.

Machine Specifications

The ITE54-CNCPG boasts an array of specifications that cater to the needs of modern manufacturers:

• Countertop Dimensions: The countertop area measures 450mm in length and 500mm in width, providing ample space for tool placements and adjustments.

• Axis Travel: The machine offers exceptional travel capabilities across the

  X-axis, Y-axis, and Z-axis:

  • X-axis: 130mm
  • Y-axis: 350mm
  • Z-axis: 350mm

• Spindle Runout: Achieving precision is key, and with a spindle runout of less than 0.01mm, you can rest assured of accurate sharpening results.

• Maximum Diameter of Grinding Wheel: The sharpener is capable of accommodating a grinding wheel up to 200mm, allowing for various sharpening tasks.

• Maximum Grindable Tool Length: The sharpener can handle tools up to 160mm in length, providing versatility for different tool types.

• Maximum Grindable Tool Diameter: Users can sharpen tools with a diameter of up to 250mm, broadening the machine’s usability.

• Machining Tool Runout and Finish: Achieving high-quality finishes is crucial in any machining operation. The ITE54-CNCPG offers runout specifications of less than 0.03mm, ensuring superior results, and maintains a machining tool finish of 0.2.

Efficient Tool Sharpening

What sets the ITE54-CNCPG apart is its multi-axis capability. This feature allows the machine to simultaneously process tool sharpening on multiple axes, drastically reducing the time typically spent on sharpening and increasing overall productivity. The integrated CNC technology allows for precise programming, which means you can set up complex sharpening tasks with minimal manual intervention.

In addition, the machine is designed with user-friendliness in mind. The intuitive control interface enables operators to easily input specifications and adjust parameters without extensive training. The ergonomic design of the control panel ensures comfort during operation, minimizing fatigue during prolonged use.

The Importance of Regular Tool Maintenance

In any machining process, the sharpness of the cutting tool directly correlates with the quality of the finished product. Dull tools not only compromise accuracy, causing poor finishes and increased waste but can also slow down the production process. The ITE54-CNCPG Multi-axis Sharpener addresses these issues by allowing for regular maintenance and sharpening of tools, ensuring that they remain at optimal performance levels.

Utilizing the ITE54-CNCPG sharpener means extending the life of your tools, reducing replacement costs, and improving the efficiency of your production line. Moreover, maintaining sharp tools can lead to better energy consumption, as machines don’t have to work as hard when equipped with well-maintained cutting instruments.

Safety Features

Safety is paramount in any industrial setting, and the ITE54-CNCPG sharpener incorporates various safety features designed to protect operators and machinery. The enclosed design not only protects the operators from noise and dust but also keeps debris contained during the sharpening process.

The safety switch on the machine’s control panel ensures that the operation is halted in case of emergencies, preventing accidents and equipment damage. Additionally, the use of high-quality materials in manufacturing guarantees that the ITE54-CNCPG can withstand the rigors of daily industrial use while minimizing the risk of failure.

Applications Across Industries

The versatility of the ITE54-CNCPG Multi-axis Sharpener makes it suitable for a wide range of applications across various industries:

1. Manufacturing: In factories producing components with intricate shapes or fine tolerances, keeping tools sharp is essential to maintain quality.
2. Metalworking: The sharpener is invaluable in metalworking shops where cutting tools see heavy use. Regular sharpening not only saves costs but also improves machining accuracy.

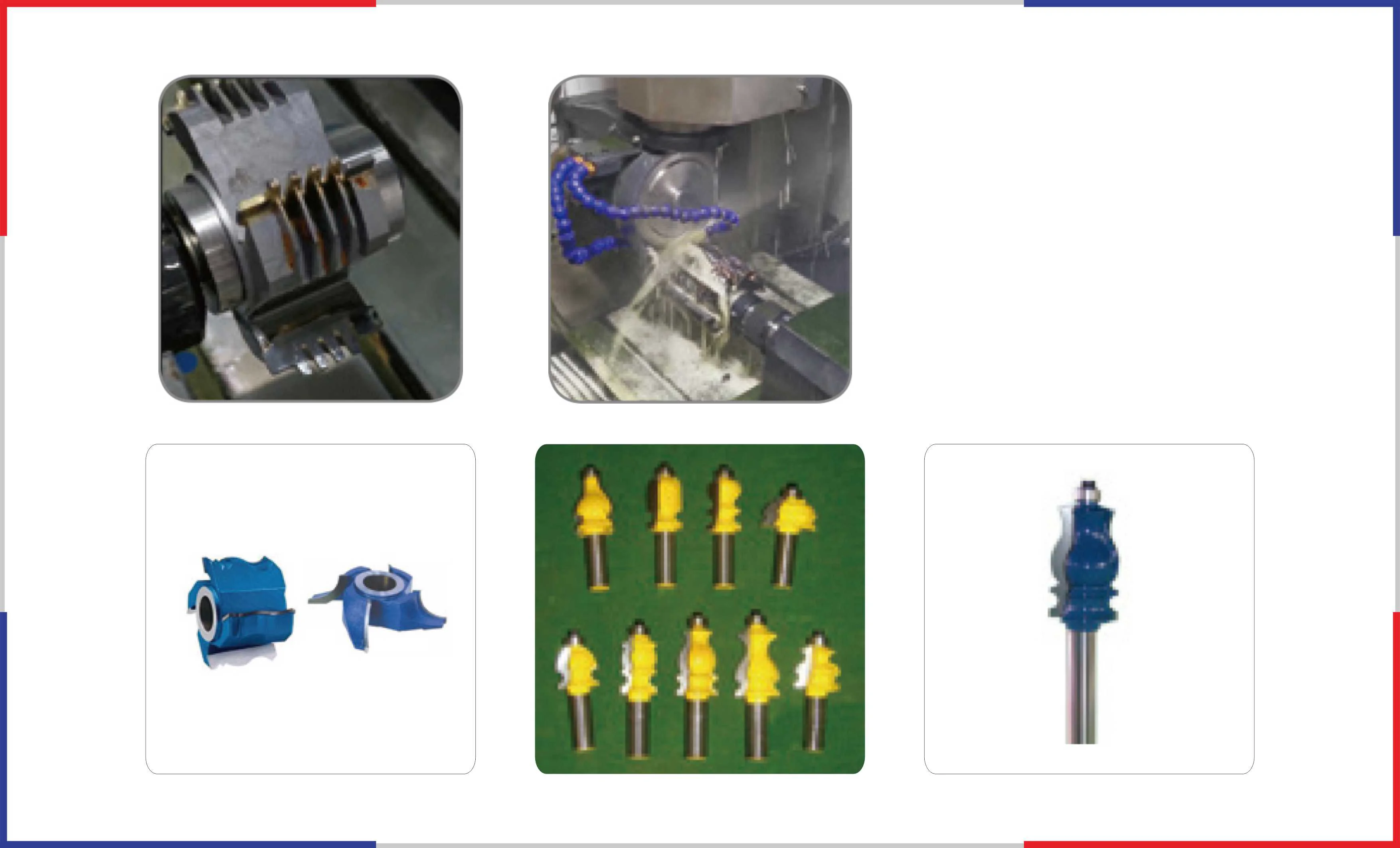

3. Woodworking: Woodworkers will find the ITE54-CNCPG crucial for maintaining router bits, chisels, and saw blades, ensuring that all cutting instruments perform effectively.
4. Construction: With tools regularly exposed to tough materials, the sharpener offers a reliable solution for maintaining drilling and cutting equipment.
5. Engineering: The ability to sharpen complex tools and custom designs makes the ITE54-CNCPG ideal for engineering applications, where precision is critical.

Cost-Effectiveness

Investing in the ITE54-CNCPG Multi-axis Sharpener can significantly impact your bottom line. With its high-quality performance and ability to easily handle a wide variety of tools, owners can expect a swift return on investment. The savings from reduced tool replacement costs, combined with the increased efficiency gained from frequent sharpening, position the ITE54-CNCPG as a critical asset for any manufacturing plant or workshop.

Conclusion

The ITE54-CNCPG Multi-axis Sharpener represents a fusion of innovative technology, robust engineering, and user-friendly design. This powerful machine provides businesses with the means to maintain their cutting tools at peak performance, enhancing productivity and quality while reducing long-term expenses.

For those looking to elevate their machining processes and ensure the longevity of their tools, the ITE54-CNCPG is undoubtedly an essential addition. Invest in the future of your tool maintenance today with the unmatched capabilities of the ITE54-CNCPG Multi-axis Sharpener—your reliable partner in precision and efficiency!
