PROFILE CUTTER GRINDING MACHINE ITE223C

The ITE223C Profile Cutter Grinding Machine stands at the forefront of precision engineering, designed to cater to the sophisticated needs of modern manufacturing. Whether you are engaged in woodworking, metalworking, or specialized craft industries, this versatile solution enhances productivity through reliability and precision. This product description provides a comprehensive look into the features, specifications, and overall benefits of integrating the ITE223C into your operations.

Technical Specifications

Understanding the performance capabilities of the ITE223C begins with its detailed technical specifications:

  1. Cutter Reat Stroke: The machine provides an impressive cutter rest stroke of 300 mm, allowing for a range of operations and accommodating diverse cutter sizes.
  2. Grinding Wheel Adjustable Angle: With an adjustable angle of ±45°C, the ITE223C offers flexibility in grinding, enabling the user to achieve the desired profile for complex designs.
  3. Cutter Rest Turning Diameter: A 355 mm turning diameter ensures that you can handle larger materials effectively, promoting accuracy while also reducing material handling time.
  4. Main Spindle Shuttle Distance: The 100 mm spindle shuttle distance permits detailed grinding sessions with precision, ensuring that every cut meets your expectations.
  5. Grinding Wheel Install Size: The grinding wheel can be adjusted for sizes ranging from Ø 32 mm to Ø 205 mm, enhancing adaptability across various tasks.
  6. Motor Power: The main electric motor power of 2.2 kW provides robust performance capabilities, ensuring that the grinding operations are carried out smoothly and efficiently.
  7. Grinding Wheel Rotate Speed: With variable speeds of 4500 to 10000 r/min, operators can optimize grinding conditions tailored to different materials and cutter types.
  8. Water Pump Electric Motor Power: The water pump operates at 90 W, guaranteeing that the grinding process remains cool through its effective cooling mechanism.
  9. Knife Shaft Adapter Sizes: This grinding machine accommodates knife shaft sizes of Ø 25.4, Ø 30, Ø 35, and Ø 40 mm, enhancing versatility and customization.
  10. Lighting Specifications: Equipped with lighting specifications of 24V-35V, the machine ensures excellent visibility, further enhancing safety and precision during operations.
  11. Overall Dimensions: Measuring 1220 x 1000 x 1380 mm, the ITE223C fits seamlessly into workshops of varying sizes without occupation of excessive floor space.
Parameter Specification
Cutter Beat Stroke 300 mm
Grinding Wheel Adjustable Angle ±45°
Cutter Rest Turning Diameter 355 mm
Main Spindle Shuttle Distance 100 mm
Grinding Wheel Install Size Ø32×Ø205 mm
Main Electric Motor Power 2.2 kW
Grinding Wheel Rotate Speed 4500/10000 r/min (变频调速)
Water Pump Electric Motor Power 90 W
Knife Shaft Adapter Ø25.4, Ø30, Ø35, Ø40
Lighting Specifications 24V-35V
Size 1220×1000×1380 mm

Key Features

The ITE223C Profile Cutter Grinding Machine integrates several standout features that significantly improve operational efficiency:

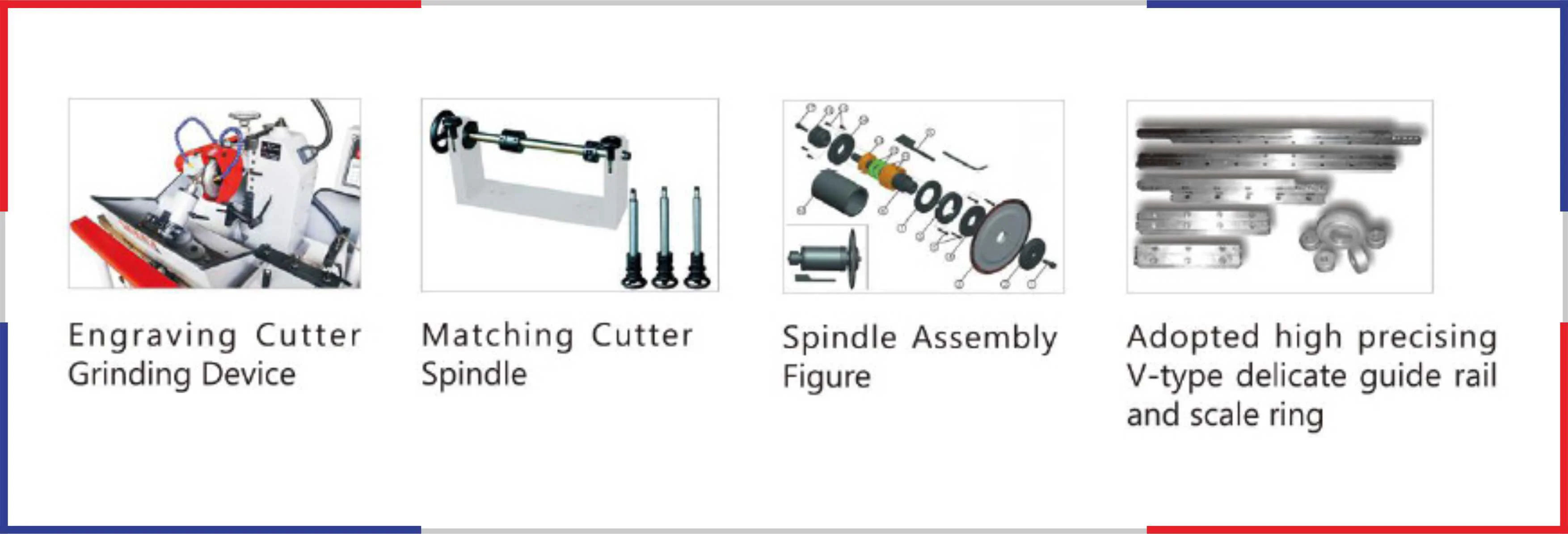

1. Engraving Cutter Grinding Device

The machine comes fitted with an engraving cutter grinding device, ensuring the highest quality finishes on your profiles. This component is engineered to deliver exceptional grinding performance while maintaining cutter integrity, producing sharp and defined cutting edges.

2. Matching Cutter Spindle

The inclusion of a matching cutter spindle, systematically designed to work seamlessly with various cutter types, significantly amplifies productivity. This feature allows for quick adjustments and enhances flexibility in cutter configurations.

3. High Precision Components

Using high-precision V-type delicate guide rails and scale rings, the ITE223C guarantees unparalleled accuracy. This engineering design ensures smooth operation and consistency in grinding processes, eliminating variances and errors.

4. User-Friendly Interface

The intuitive control panel facilitates easy navigation through machine settings, making it accessible to users of various skill levels. This feature enhances work efficiency and reduces training times for new operators.

5. Robust Construction

The ITE223C is constructed from high-quality materials, ensuring durability and long service life. Its robust design withstands rigorous industrial use, making it a reliable addition to any workshop.

Applications

The versatility of the ITE223C Profile Cutter Grinding Machine allows it to be utilized in numerous applications, including:

  • Woodworking: Ideal for sharpening and refining various woodworking tools and profiles.
  • Metalworking: Capable of grinding sharp edges on metal tools, ensuring superior performance.
  • Manufacturing: The precise calibration of the ITE223C enhances manufacturing processes, contributing to higher output quality and diminished downtime.
  • Crafts and Hobbyist Projects: Hobbyists and small-scale manufacturers will find this machine invaluable in creating intricate designs and patterns.

User Benefits

Investing in the ITE223C opens the door to numerous user benefits that contribute to improved operational effectiveness:

  1. Enhanced Productivity: The machine’s high-speed capabilities and adaptable features significantly reduce grind time, allowing for increased throughput and reduced idle time.
  2. Superior Precision: The high-precision engineering translates to tighter tolerances and minimal variances in cutter profiles, improving product quality and consistency.
  3. Safety and Comfort: With integrated lighting and an intuitive interface, user comfort and safety are prioritized. The design minimizes risks commonly associated with grinding operations.
  4. Cost-Effective Operation: Lower operational costs are achieved through efficient grinding operations, reduced wear on cutters, and lower maintenance needs than many competing machines.
  5. Support and Maintenance: Backed by reputable customer service and support options, the ITE223C ensures that users have access to necessary resources for maintenance and troubleshooting.

Summary

In conclusion, the ITE223C Profile Cutter Grinding Machine is a robust, reliable, and versatile tool designed for high-performance in various industrial applications. Its impressive array of features, precision engineering, user-friendly interface, and superior operational capabilities make it an outstanding choice for businesses seeking to improve cutter grinding efficiency.

Whether you are looking to enhance your existing operations or invest in new machinery, the ITE223C offers a comprehensive solution that caters to all your profiling and grinding needs. With this machine, customers are assured of quality, precision, and long-term value, making it a worthy addition to any workshop or factory floor.
