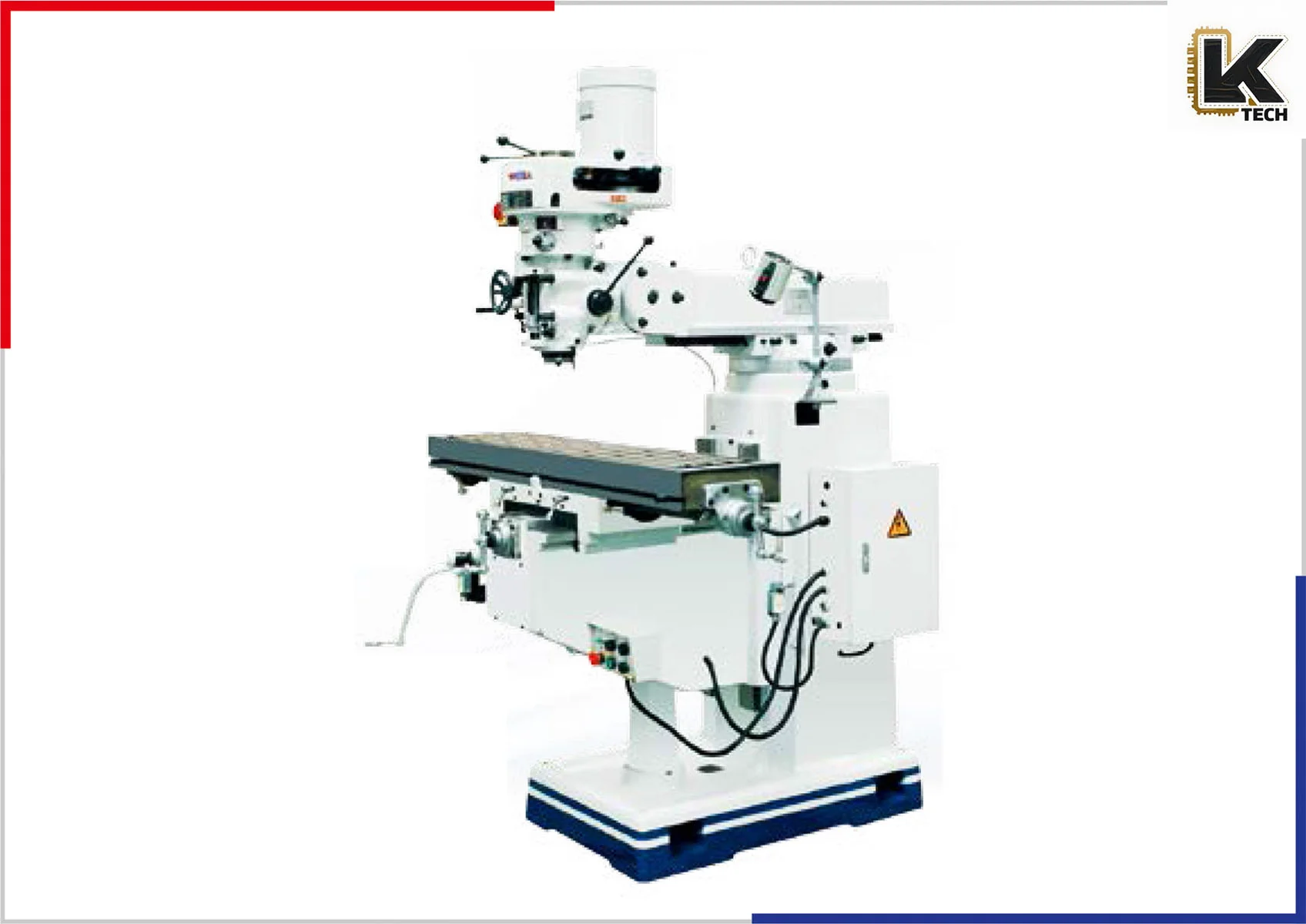

Turret Milling Machine: Unleashing Precision and Efficiency in Metalworking

Introduction

Welcome to a new era of precision engineering with the LK-Tech Turret Milling Machine. Designed for both novice machinists and seasoned professionals, this state-of-the-art apparatus combines advanced technology, robust construction, and versatile functionality to deliver unparalleled performance across a range of milling applications. Whether you’re fabricating intricate components or performing routine maintenance, the LK-Tech Turret Milling Machine stands as your reliable partner in achieving consistent results.

Features and Specifications

1. Table Dimensions The LK-Tech Turret Milling Machine comes equipped with a spacious table size of 254 x 1270 mm for the X6325D model and an expansive 254 x 1370 mm option for the X6325C variant. This generous work area facilitates the machining of larger workpieces while ensuring stability and precision.

2. Travel Range With a longitudinal travel of 850 mm for the X6325D and 950 mm for the X6325C, complemented by a transverse and vertical travel range of 420 mm, this machine allows for extensive maneuverability when positioning the workpiece for various milling operations.

3. Spindle Speed and Performance Harness the power of a variable spindle speed range adjustable between 65 to 4500 RPM standard, with an optional infinite variable range from 62 to 4200 RPM. This diverse range ensures optimal performance, whether you are roughing out large sections of material or performing delicate finishing operations.

4. Automated Feeding Mechanisms The machine features three automatic spindle feed rates of 0.04, 0.08, and 0.15 mm/revolution, enabling automatic operation and enhancing productivity by allowing the operator to focus on other tasks.

5. Sturdy Construction An impressive spindle travel of 127 mm combined with a spindle taper of R8 (or ISO30/ISO40 on special order) bolsters the LK-Tech Turret Milling Machine’s versatility. The robust construction ensures the machine withstands rigorous use, providing reliability that you can count on.

6. Power and Efficiency The X6325D model boasts a spindle motor power of 2.25 kW while the X6325C matches a higher output of 3.75 kW. This significant power translates to increased milling speeds, making both models suitable for heavy-duty applications without compromising performance.

7. Precision and Adjustability With adjustable head swivel of 90° and head tilting capabilities of up to 40°, the LK-Tech Turret Milling Machine offers improved flexibility. This adjustability enables you to execute a variety of angles and profiles, moving beyond conventional milling capabilities.

Advantages of Using the LK-Tech Turret Milling Machine

1. Enhanced Productivity The combination of high-speed spindle operation and significant automatic feed rates facilitates efficient material removal. The machine’s structured operations minimize downtime, leading to faster project completion and increased throughput.

2. Precision Engineering Equipped with a solid cast iron construction and proper alignment mechanisms, the LK-Tech Turret Milling Machine assures high levels of accuracy and precision, an essential requirement for both machining experts and those new to the field.

3. Versatility Across Applications From intricate design work to large component milling, this turret milling machine excels across diverse applications including but not limited to mechanical part production, mold making, and repairs in various industries.

4. User-Friendly Design The intuitive control panel enhances usability for all skill levels. Coupled with preset feed rates and a responsive interface, operators can easily select and adjust settings, making the LK-Tech Turret Milling Machine an ideal choice for any workshop.

5. Compact Yet Powerful Despite its robust design, the machine’s dimensions and weight (ranging from 1550 kg for the X6325D to 1590 kg for the X6325C) ensure that it can fit into most workshop spaces while providing heavyweight performance.

Applications

The LK-Tech Turret Milling Machine is ideal for various applications, including, but not limited to:

• Mechanical Engineering: High-precision milling of mechanical components and assemblies for automotive and aerospace industries.
• Fabrication Shops: Production of machined parts, fixtures, and tooling for tailored manufacturing solutions.
• Education and Training: Essential in academic settings, this machine aids in training engineering students in practical machining skills.
• Prototype Development: Excellent for prototyping and test runs where precision and detail are paramount.

Safety Features

Safety is paramount when operating heavy machinery. The LK-Tech Turret Milling Machine incorporates various safety features to safeguard users, including:

• Emergency Stop Buttons: Easily accessible emergency shut-off switches ensure prompt termination of operations in case of emergencies.
• Cover Shields: Protecting users from potential debris and any inadvertent contact with moving parts.
• Operator Manuals and Training: Detailed operational guides and manuals come standard with the machine, offering best practices and safety instructions.

Maintenance Guidance

To maximize the lifespan and performance of your LK-Tech Turret Milling Machine, regular maintenance is vital. Here are key maintenance tips:

• Routine Lubrication: Ensure that all moving parts are well-lubricated regularly to minimize wear and tear.
• Regular Cleaning: Keeping the machine free from debris and dust extends its longevity and functionality.
• Periodic Inspections: Conducting regular checks on belts, motors, and mechanical components can help identify problems before they escalate.

Conclusion

Investing in the LK-Tech Turret Milling Machine equates to investing in precision, versatility, and unparalleled performance. From its robust construction to its extensive functionally and user-oriented features, this machine fulfills the dynamic needs of modern metalworking environments. Elevate your machining capabilities and ensure your projects are executed with the utmost accuracy and efficiency. With LK-Tech, you’re not just operating a machine but embracing a superior class of engineering excellence. Choose the LK-Tech Turret Milling Machine for your workshop today and realize the true potential of milling operations.
