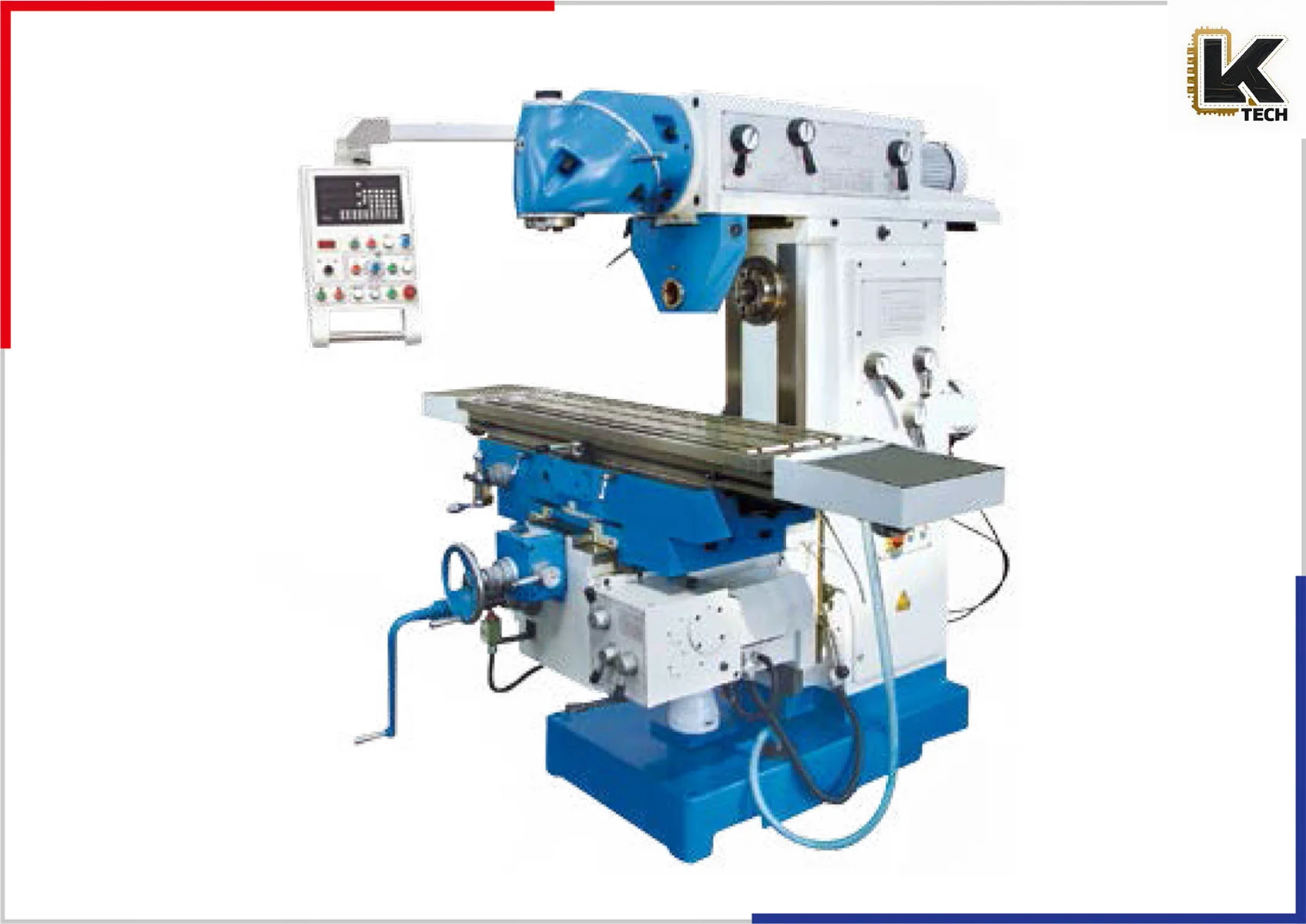

Universal Swivel Head Milling Machine: Model X6432

Universal Swivel Head Milling Machine: Model X6432

Overview

The Universal Swivel Head Milling Machine, model X6432, represents the pinnacle of precision machining technology. This versatile machine combines advanced engineering with user-friendly functionality, making it an essential tool for machining workshops, manufacturing facilities, and mechanical engineering environments. Its intuitive design and robust performance allow it to tackle a wide range of applications, from simple operations to complex machining tasks.

Key Features

1. Precision Table Dimensions: The X6432 Milling Machine boasts a spacious table size of 1320mm x 320mm. This expansive work surface is ideal for accommodating a variety of workpieces, thereby enhancing machining versatility.
2. Extensive Travel Capabilities: The table exhibits impressive travel capabilities with a longitudinal and transverse movement of 1000 mm and 300 mm, respectively. This range enables the operator to handle large parts and execute intricate machining operations effectively.
3. T-Slot Configuration: Equipped with five T-slots of 14mm width placed at a 63mm distance, the milling machine offers flexibility in securing tooling and workpieces securely. This feature further enhances productivity by reducing downtime for setup changes.
4. Robust Load Capacity: The machine is designed to support a maximum table load of 300 kg, which is critical for handling larger materials and ensuring stability during operations.
5. Advanced Spindle Taper: The universal swivel head is fitted with an ISO40 spindle taper, allowing for a wider range of tooling options. This adaptability increases the machine’s application prowess, making it suitable for varied machining tasks.
6. Variable Speed Control: The X6432 model features an impressive spindle speed range from 45 to 1660 RPM for vertical operations and 40 to 1300 RPM for horizontal operations. This adaptability enables the machine to operate efficiently across various materials and machining processes.
7. Precision Feed Mechanism: The table is designed with a power feed specification ranging from 20 to 360 mm/min for longitudinal and cross movements, achieving up to 422 mm/min for vertical movements. This precision ensures consistent machining quality and enhanced productivity.
8. Swivel Capability: The ram travel of 360° ensures that the machine can execute angled cuts without the need for repositioning the workpiece. This flexibility is essential for complex geometries and contributes to a reduction in overall machining time.
9. Powerful Motor Specifications: The spindle motor power is rated at 3 kW, with both vertical and horizontal capabilities, ensuring that the machine can perform demanding tasks effectively. Coupled with this motor is an efficient servo motor drive system that enhances responsiveness and accuracy during operations.
10. User-Friendly Control Interface: The advanced control panel features an intuitive layout that allows for easy operation and monitoring of the machine’s functions. The ergonomic design of the panel supports operators in maintaining efficiency and precision while machining.

Technical Specifications

• Table Size: 1320 mm x 320 mm
• Table Travel: 1000 mm (longitudinal) x 300 mm (transverse)
• T-Slot Width/Distance: 5 slots of 14 mm (distance of 63 mm)
• Max Table Load: 300 kg
• Spindle Taper: ISO40
• Distance from Spindle Axis to Table Surface: 0-420 mm
• Distance from Spindle Axis to Ram Surface: 180-600 mm
• Spindle Speed Range: 45-1660 RPM (vertical), 40-1300 RPM (horizontal)
• Ram Travel: 360°
• Spindle Motor Power: 3 kW
• Overall Dimensions (L × W × H): 2020 mm × 1710 mm × 1994 mm
• Machine Weight: 2100 kg

Applications

The X6432 Universal Swivel Head Milling Machine is highly valued across various sectors, including:

• Aerospace Manufacturing: Precision machining of components such as brackets, housings, and fittings that are critical for aircraft engineering.
• Automotive Industry: Ideal for fabricating engine parts, transmission cases, and a multitude of other automotive components where precision is vital.
• Tool and Die Making: Essential for the production of molds, dies, and tooling used in manufacturing processes across the industry.
• Field of Maintenance and Repair: Servicing and repairing machinery by providing quick and adaptable solutions through the versatile design of the milling head.

Conclusion

In conclusion, the Universal Swivel Head Milling Machine X6432 stands out as a robust and versatile machine tool capable of fulfilling the demands of both large scale production and precision machining. Its superior engineering, combined with advanced features and an intuitive design, makes it an indispensable tool for any modern machine shop. Invest in the X6432 to enhance your manufacturing capabilities and boost your operational productivity with unparalleled precision and reliability.
