Advanced Vertical Machining Center - VNM5710

The VNM5710 Vertical Machining Center is engineered for precision and versatility in modern manufacturing. It stands as an essential solution for businesses looking to enhance their machining capabilities while ensuring the highest standards of performance and efficiency. With advanced technological features, robust construction, and exceptional usability, this machining center is tailored for a range of industries, including aerospace, automotive, medical device manufacturing, and general engineering.

Unique Features

State-of-the-Art Construction

The VNM5710 is designed with a sturdy, integral framework that provides increased stability during machining operations. This rigged construction minimizes vibrations, which can compromise the accuracy of the machined parts. The machining center’s overall size of 3150 x 2450 x 2750 mm ensures ample room for large workpieces, while its compact design maximizes shop floor space efficiency.

Precision Engineering

This machining center is equipped with a table size of 1300 x 570 mm and a maximum load capacity of 1000 kg. The professional-grade table provides a stable and expansive surface for various workpieces, while the precise T-slot configuration (18-4-125 mm) allows for effortless securing and adjustment of fixtures and jigs.

The machine features a Y-axis travel of 1050 mm, an X-axis travel of 570 mm, and a Z-axis travel of 600 mm, making it suitable for a wide range of complex machining tasks. The design ensures that the spindle nose distance to the table surface is adjustable between 150 and 750 mm, thereby accommodating various part sizes.

High-Speed Capabilities

The VNM5710 boasts a maximum spindle speed of 10,000 rpm, powered by an impressive spindle motor rated at 11/18.5 kW. This high-speed capability is ideal for both roughing and finishing operations, allowing for increased productivity and reduced cycle times. The machine operates with a maximum torque of 52.5 Nm and a peak of 118 Nm, providing the necessary power to handle challenging materials with ease.

Tooling Flexibility

Equipped with a BT40 spindle taper, the VNM5710 supports a variety of tooling options, offering significant flexibility in machining operations. The arm-type tool magazine with a capacity of 24 tools ensures that operators can quickly switch between different cutting tools without extensive downtime. With a maximum tool length of 300 mm and maximum tool weight of 8 kg, versatile machining is ensured for a broad array of applications.

Rapid Setup and Precision

The efficient tool change time of just 1.55 seconds allows for minimal downtime during operations, while the rapid feed speed capabilities of up to 36,000 mm/min ensure that the VNM5710 can prioritize speed without sacrificing part quality.

Positioning accuracy of ± 0.005 mm and repeat positioning accuracy of ± 0.003 mm guarantees that intricate components are machined to strict tolerances, meeting the high standards of modern manufacturing processes.

Enhanced Operational Control

The sophisticated control panel enhances the user experience, featuring an intuitive interface that streamlines the machining process. Operators can easily input specifications, set parameters, and monitor progress in real time. The clear display of machine status and alerts simplifies operation, thus ensuring that production workflows remain uninterrupted.

Energy Efficient Design

With a total power capacity of just 25 kVA, the VNM5710 exemplifies energy efficiency while maintaining peak performance. This feature reflects modern manufacturing’s emphasis on sustainability, balancing high productivity levels with energy conservation.

Specification (Unit) VNMS710
Table size (mm) 1300×570
T-slot (width-No.-Distance) (mm) 18-4-125
Max. table load (kg) 1000
Axis Specifications
X-axis travel (mm) 1050
Y-axis travel (mm) 570
Z-axis travel (mm) 600
Spindle Specifications
Spindle nose to table surface (mm) 150-750
Spindle axis to column surface (mm) 590
Spindle taper BT40
Max. spindle speed (rpm) 10000
Spindle motor power (kW) 11/18.5
Max. torque of spindle (N·m) 52.5/118
Tool Changer
Tool magazine type Arm type
Tool magazine capacity (pcs) 24
Max. tool diameter (full/empty) (mm) ♦80/♦150
Max. tool length (mm) 300
Max. tool weight (kg) 8
Tool change time (T-T) (s) 1.55
Feed & Speed
Rapid feed speed (X/Y/Z) (mm/min) 36000/36000/30000
Cutting feed speed (X/Y/Z) (mm/min) 1-15000/1-15000/1-15000
Accuracy
Positioning accuracy (X/Y/Z) (mm) ±0.005/300 JIS
Repeat positioning accuracy (X/Y/Z) (mm) ±0.003 JIS
Power & Dimensions
Total power capacity (kVA) 25
Machine weight (kg) 6500
Machine overall size (mm) 3150×2450×2750

Ideal Applications

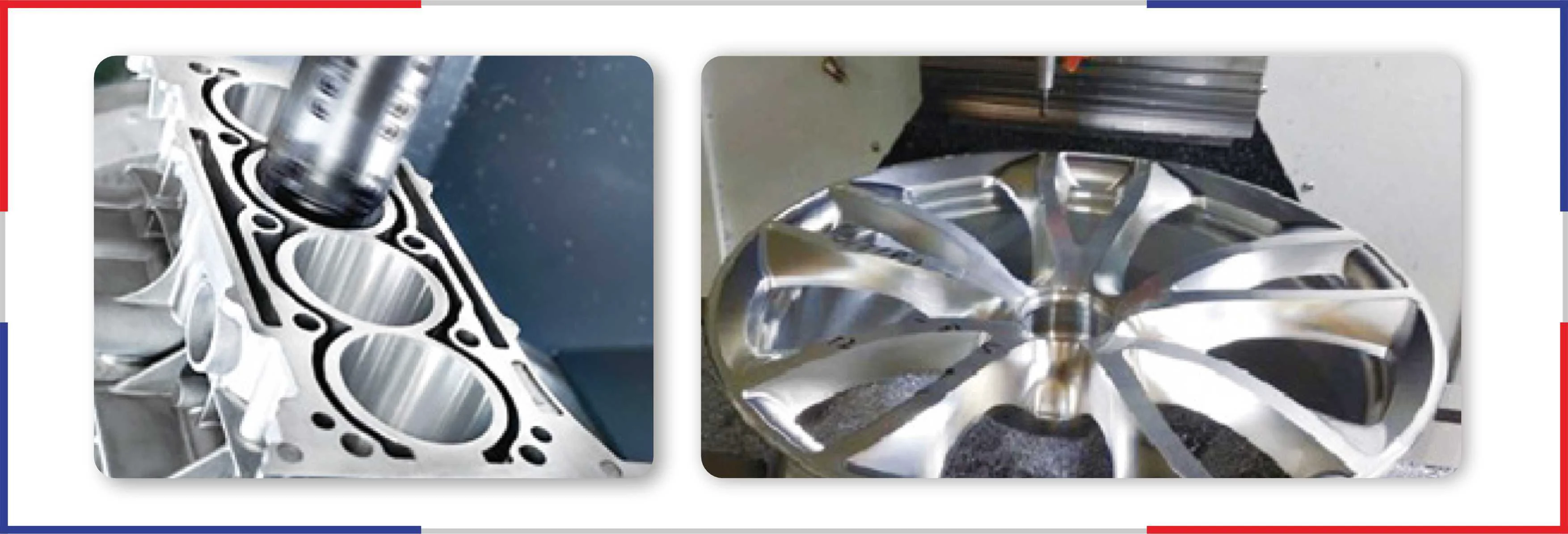

The versatility of the VNM5710 makes it suitable for various machining applications, including:

  • Precision components for aerospace and defense sectors
  • Engine block machining in automotive manufacturing
  • Production of intricate molds and dies
  • Fabrication of medical components and devices
  • General parts production across multiple industries

Commitment to Quality

The VNM5710 is built to last, ensuring long-term reliability and consistent performance under continuous operation. Each unit undergoes rigorous testing and quality control processes to ensure it meets the highest standards of excellence. The machine is backed by exceptional customer service and support, providing manufacturers with the confidence to operate efficiently.

Conclusion

The VNM5710 Vertical Machining Center encompasses all the desirable attributes of a modern machining solution. Its robust construction, high-speed capability, precision engineering, and user-friendly controls make it a valuable asset for today’s diverse manufacturing environments. By investing in the VNM5710, operators tap into enhanced productivity and operational efficiency that can significantly impact their bottom line. Embrace the future of machining and elevate your production capacity with the VNM5710. Every detail is designed to deliver quality, speed, and precision—witness manufacturing excellence with the VNM5710 Vertical Machining Center.
