Function Moulder and Circular Saw ITEM 400-2: Precision and Versatility for Your Workshop

Introduction

The Function Moulder and Circular Saw ITEM 400-2 is an exceptional piece of machinery designed for woodworking professionals and DIY enthusiasts alike. Combining precision, versatility, and robust build quality, this machine is engineered to handle a variety of cutting operations with ease and accuracy. Whether you are shaping, mitering, or making intricate cuts, the ITEM 400-2 offers both power and finesse.

Product Overview

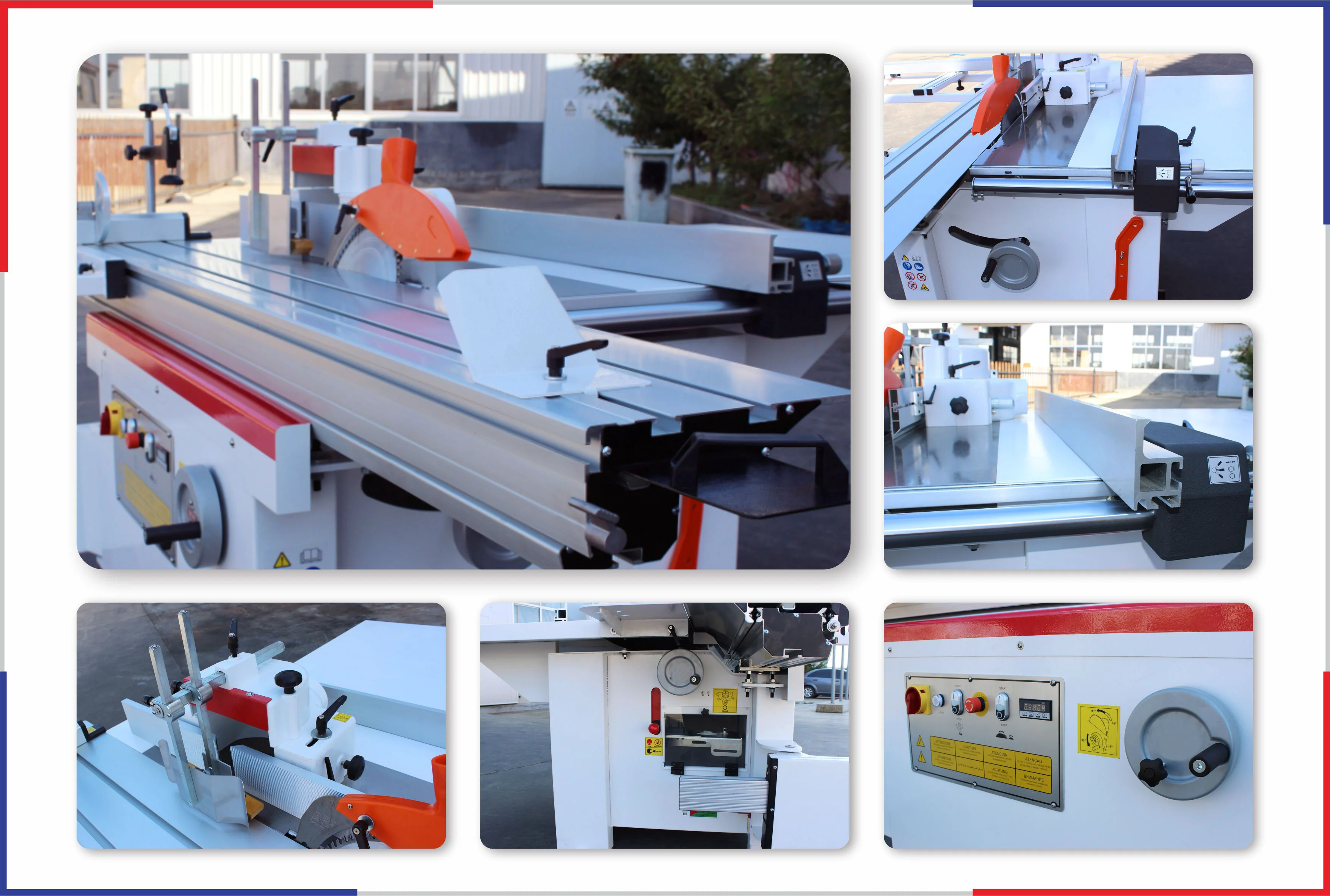

The ITEM 400-2 features a spacious working table measuring 1280 mm x 1112 mm, providing ample surface area for large workpieces. The machine is powered by a reliable three-phase motor, with a rotation speed of 4500 and 7000 RPM, ensuring high efficiency and optimal performance for both rough cuts and detailed shaping.

Multi-Functionality

The ITEM 400-2 is not just a circular saw; it also functions as a moulder and shaper, making it a true multifunctional powerhouse for any workshop. With its dual capabilities, it allows users to switch between different operations seamlessly.

  1. Circular Saw Function:
    • Blade Diameter: The machine is equipped with a powerful 300 mm blade, capable of making precise cuts through various wood materials.
    • Cutting Heights: It can achieve cutting heights of 75 mm at a 45-degree angle and 95 mm at a 90-degree angle, offering versatility for different project requirements.
    • Scoring Blade: A dedicated 90 mm x 22 mm scoring blade ensures clean, splinter-free cuts, enhancing the overall quality of the work.
  2. Moulding and Shaping:
    • Working Table for Shaping: The moulder features a dedicated table measuring 290 mm x 1112 mm, designed specifically for shaping operations.
    • Varied Speed Options: The shaft rotation speeds for the moulder range from 2000 to 7000 RPM, allowing for custom adjustments based on the specific requirements of each task.
    • Tool Compatibility: It accommodates standard shaft diameters of 30 mm, 35 mm, and 50 mm, as well as a maximum tool diameter of 180 mm, providing flexibility in tool choices.

User-Friendly Features

  1. Intuitive Control Panel: The control interface is designed for ease of use, featuring clearly labeled buttons and indicators to manage the machine’s various settings. This ensures that even users with minimal experience can operate the ITEM 400-2 confidently.
  2. Safety Features: Safety is paramount when working with powerful machinery. The ITEM 400-2 includes essential safety features, such as:
    • Emergency stop button for immediate shutdown.
    • Protective guards around the blades to minimize the risk of accidents.
    • Ergonomic handles for added control while making cuts.
  3. Flexible Adjustment Options: The ITEM 400-2 allows users to adjust the distance between the blade and the fence up to 1250 mm, providing the flexibility needed to accommodate various workpieces.

Build Quality and Durability

Constructed with high-quality materials, the ITEM 400-2 is built to withstand the rigors of daily use in a busy workshop. The robust frame ensures stability, while the precision-engineered components guarantee long-lasting performance.

  • Weight: Weighing in at 430 kg, this machine is stable and minimizes vibrations during operation, contributing to more precise cuts.
  • Stainless Steel Surface: The smooth surface of the working table is designed to resist scratches and wear, maintaining a clean and functional workspace.

Optional Accessories

To enhance the functionality of the ITEM 400-2, various optional accessories are available. Users can choose to upgrade the motor to a single-phase option or increase the three-phase motor capacity for more demanding applications. Additionally, a dimension carriage can be added for those requiring extensive piece measurements.

  • Accessories Include:
    • Single-phase motor (4.0 HP - 3.0 kW)
    • Increased three-phase motor (5.5 HP - 4.0 kW)
    • Dimension carriage measuring 2600 mm

Main Specifications

Parameter Unit Value
Working table mm 1280×1112
Shaft rotation/Engraver speed rpm 4500/7000
Blade diameter mm 300×30
Cutting height at 45°/90° mm 75/95
Max distance between blade and fence mm 1250
Scoring blade diameter mm 90×22

Shaper Specifications

Parameter Unit Value
Working tables mm 290×1112
Shaft rotation speeds rpm 2000/3100/4400/7000
Standard shaft diameter mm 30/35/50
Shaft vertical stroke mm 115
Max. tool diameter mm 180
Max. tenoning depth mm 65

Standard Accessories

Parameter Unit Value
3-phase motor power HP - kW 4.0 - 3.0
Carriage dimensions mm 2200×315
Weight kg 430

Optional Accessories

Parameter Unit Value
Single-phase motor HP - kW 4.0 - 3.0
Increased 3-phase motor HP - kW 5.5 - 4.0
Dimension Carriage mm 2600

Applications

The ITEM 400-2 is ideal for a variety of woodworking applications, including:

  • Furniture Manufacturing: Create high-quality furniture pieces with precise cuts and intricate moldings.
  • Cabinet Making: Enhance cabinet designs with professional-grade shaping and cutting techniques.
  • Architectural Woodworking: Perfect for producing unique architectural elements that require a high level of craftsmanship.
  • Custom Projects: Whether you are running a commercial shop or tackling personal woodworking projects, the ITEM 400-2 adapts to your needs with its multifunctional capabilities.

Conclusion

In the competitive world of woodworking and furniture production, having the right tools can make all the difference. The Function Moulder and Circular Saw ITEM 400-2 stands out as a superior choice for professionals seeking durability, versatility, and precision in their machinery. With its array of features, robust construction, and safety mechanisms, it is an investment that can elevate your woodworking capabilities. Whether you’re shaping new designs or making straight cuts, the ITEM 400-2 will not disappoint, making it a valuable addition to any workshop.
