Automatic Edge Banding Machine (Economy): Revolutionizing Your Woodworking Needs

Automatic Edge Banding Machine (Economy): Revolutionizing Your Woodworking Needs

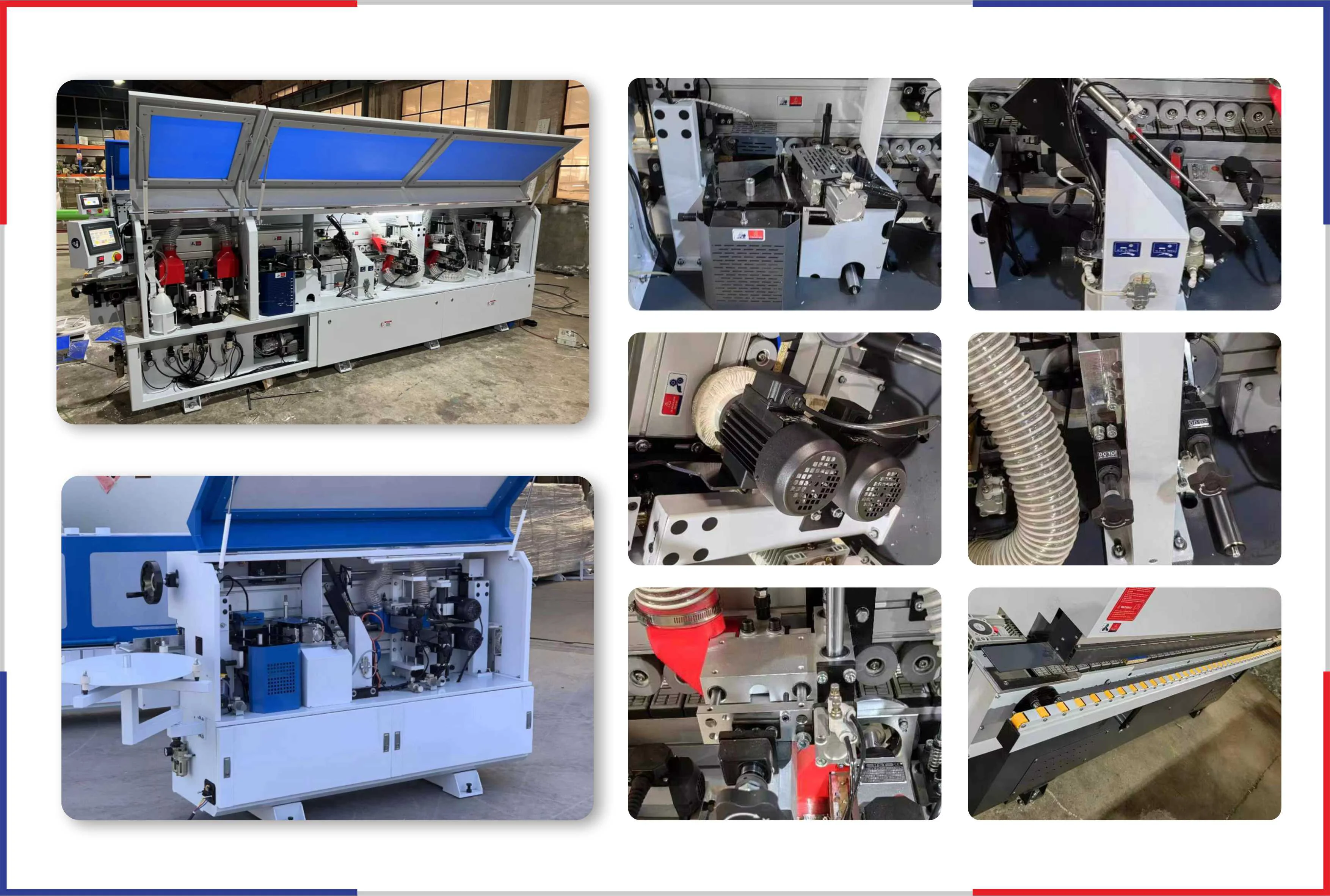

The Automatic Edge Banding Machine (Economy) is a groundbreaking solution for woodworkers and furniture manufacturers who seek to optimize production efficiency while maintaining high-quality finishes. This state-of-the-art machinery is engineered specifically for professional use in various woodworking settings, allowing users to seamlessly apply edge banding to panels with precision and speed. With its robust features, advanced technology, and user-friendly design, it represents a significant advancement in edge banding technology.

Overview of Key Features

The Automatic Edge Banding Machine offers a remarkable combination of functionality, power, and efficiency. It is designed to cater to the diverse needs of woodworking professionals, from small-scale workshops to large manufacturing facilities. Let’s delve deeper into the key features and specifications of the ITE-FB series models, which comprise the ITE-FB220, ITE-FB280, ITE-FB290, and ITE-FB295.

High Power and Performance

One of the standout characteristics of the Automatic Edge Banding Machine is its powerful motor, which ranges from 6 kW in the ITE-FB220 and ITE-FB280 models to a robust 10.5 kW in the ITE-FB295 model. This outstanding power ensures high operational speeds, maximizing productivity in every task.

Versatile Edge Banding Capabilities

Whether you are working with wood, particle board, or MDF, the Automatic Edge Banding Machine can accommodate a panel thickness of 10-45 mm, allowing for versatile applications across different types of materials. The machine can handle edge banding tape thickness ranging from 0.4 mm to 3 mm, making it suitable for any customizations or specific project requirements you may encounter.

Adjustable Height and Width Features

The height adjustment of edge banding tape can be set between 10 mm to 38 mm, facilitating a wide array of edge banding needs. The machine’s capabilities extend to panel widths of over 80 mm for the ITE-FB220 and ITE-FB280 models, and over 120 mm for the more substantial ITE-FB295 model, making it adaptable to varying production demands.

Efficient Feeding Mechanism

The machine design includes a feeding speed of 10 meters per minute across all models, ensuring rapid processing without sacrificing quality. The reliable feed mechanism helps maintain consistent performance, allowing for an uninterrupted workflow.

Advantages of the Automatic Edge Banding Machine

Enhanced User Experience

The Automatic Edge Banding Machine is designed with user-friendliness in mind. The touch-screen control system sourced from Taiwan Delta enhances the user experience by offering intuitive operation and easy navigation through the machine’s various functionalities.

Moreover, each model is equipped with manual control adjustments for panel thickness, allowing operators to customize settings on the fly for different types of workpieces.

Reliable Components

This machine employs high-quality electrical parts including Siemens components, which are renowned for their reliability and durability. The advanced high-speed motors and gear motors from HST/CC contribute to a smoother operation with minimal downtime. The incorporation of high-grade pneumatic cylinders from Korea also ensures efficient performance while managing air pressure effectively at 0.8 MPa across all machine models.

High Precision and Quality

The ITE-FB series specializes in providing precise edge banding, trims, and finishes. The integrated functionalities such as pre-milling, glue application, end trimming, fine trimming, and buffing allow for exceptional finishing touches on any panel, giving it a professional and polished look. For those investing in the ITE-FB290 and ITE-FB295 models, additional features such as corner trimming, scraping, and cleaning are available for enhanced capabilities.

Robust and Durable Design

Constructed with a sturdy overall size ranging from 2600 x 600 x 1400 mm for the ITE-FB220 to 4250 x 600 x 1400 mm for the ITE-FB295, this machine is built to withstand the rigors of a busy workshop environment. Weighing between 900 kg and 1300 kg depending on the model, the machine’s stability contributes to accurate and reliable performance.

Parameter ITE-FB220 ITE-FB280 ITE-FB290 ITE-FB295
Functions gluing/pressing/end trimming/fine trimming/buffing gluing/pressing/end trimming/fine trimming/scraping/buffing pre-milling/gluing/pressing/end trimming/fine trimming/scraping/cleaning/buffing pre-milling/gluing/pressing/end trimming/fine trimming/corner trimming/scraping/cleaning/buffing
Power & Dimensions
Total power 6 kW 6 kW 9 kW 10.5 kW
Overall size 2600×600×1400 mm 2900×600×1400 mm 3400×600×1400 mm 4250×600×1400 mm
Weight 900 kg 1000 kg 1100 kg 1300 kg
Performance
Feeding speed 10 m/min 10 m/min 10 m/min 10 m/min
Panel thickness 10-45 mm 10-45 mm 10-45 mm 10-45 mm
Edge banding tape thickness 0.4-3 mm 0.4-3 mm 0.4-3 mm 0.4-3 mm
Edge banding tape height 10-38 mm 10-38 mm 10-38 mm 10-38 mm
Panel width ≥80 mm ≥80 mm ≥80 mm ≥80 mm
Panel length ≥120 mm ≥120 mm ≥120 mm ≥120 mm
Working air pressure 0.8 MPa 0.8 MPa 0.8 MPa 0.8 MPa
Control Systems
Edge banding tape adjust Manual control Manual control Manual control Manual control
Panel thickness adjust method Manual control Manual control Manual control Manual control
Frequency converter TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA
Touch screen control system TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA
Components
Electrical parts SIEMENS SIEMENS SIEMENS SIEMENS
High speed motor HST/CC HST/CC HST/CC HST/CC
Gear motor TAIWAN TAIWAN TAIWAN TAIWAN
Pneumatic cylinder TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC
Limit switch Honeywell Honeywell Honeywell Honeywell
Proximity switch KOREA AUTONICS KOREA AUTONICS KOREA KOREA
Temperature controller KOREA AUTONICS KOREA AUTONICS KOREA KOREA
Magnet switch TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC
Guide rail TAIWAN CSK TAIWAN CSK TAIWAN CSK TAIWAN CSK
Pneumatic valve TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC TAIWAN AIRTAC
24V DC Power TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA TAIWAN DELTA

Applications and Industries

The Automatic Edge Banding Machine is ideally suited for a multitude of woodworking applications. It can be utilized in:

  • Furniture Manufacturing: From tables to cabinets, achieving seamless edges is crucial, and this machine provides a professional finish that enhances aesthetics and durability.
  • Cabinet Production: The versatility in panel sizes and thicknesses makes it suitable for cabinetry, ensuring edges are beautifully banded for a refined look.
  • Retail Fixtures: Tailored retail displays require strong and attractive finishes, making this machine critical for producing high-quality fixtures quickly.
  • Interior Design Projects: Designers benefit from the fast turnaround of custom pieces with flawless edge finishes, making the Automatic Edge Banding Machine an essential part of project workflows.

Maintenance and Support

Ensuring the longevity and optimal performance of your Automatic Edge Banding Machine requires regular maintenance. The machine’s design facilitates easy access for servicing and maintenance tasks. With proper care and usage, operators can maximize the machine’s lifespan and minimize any potential downtime due to wear and tear.

Additionally, purchasing from authorized distributors means you gain access to customer support channels for troubleshooting and technical inquiries. Operators are advised to follow operational guidelines strictly to ensure safety and enhance machine durability.

Conclusion

The Automatic Edge Banding Machine (Economy) signifies a leap forward in woodworking machinery, providing professionals with everything they need to enhance productivity and quality. Its powerful performance, versatility in handling various materials, and user-friendly controls cater to the intricate demands of edge banding.

With its robust construction, advanced features, and reliable components, this machine promises to meet the high standards required in today’s woodworking landscape. For any woodworking business looking to upgrade their edge banding capabilities, investing in the Automatic Edge Banding Machine is a decision that will drive efficiency, yield outstanding finishes, and streamline operations.

By choosing the Automatic Edge Banding Machine (Economy), you are not just investing in machinery; you are investing in the future of your woodworking business. Experience the difference it can make in your workflow and the quality of your finished products today!
