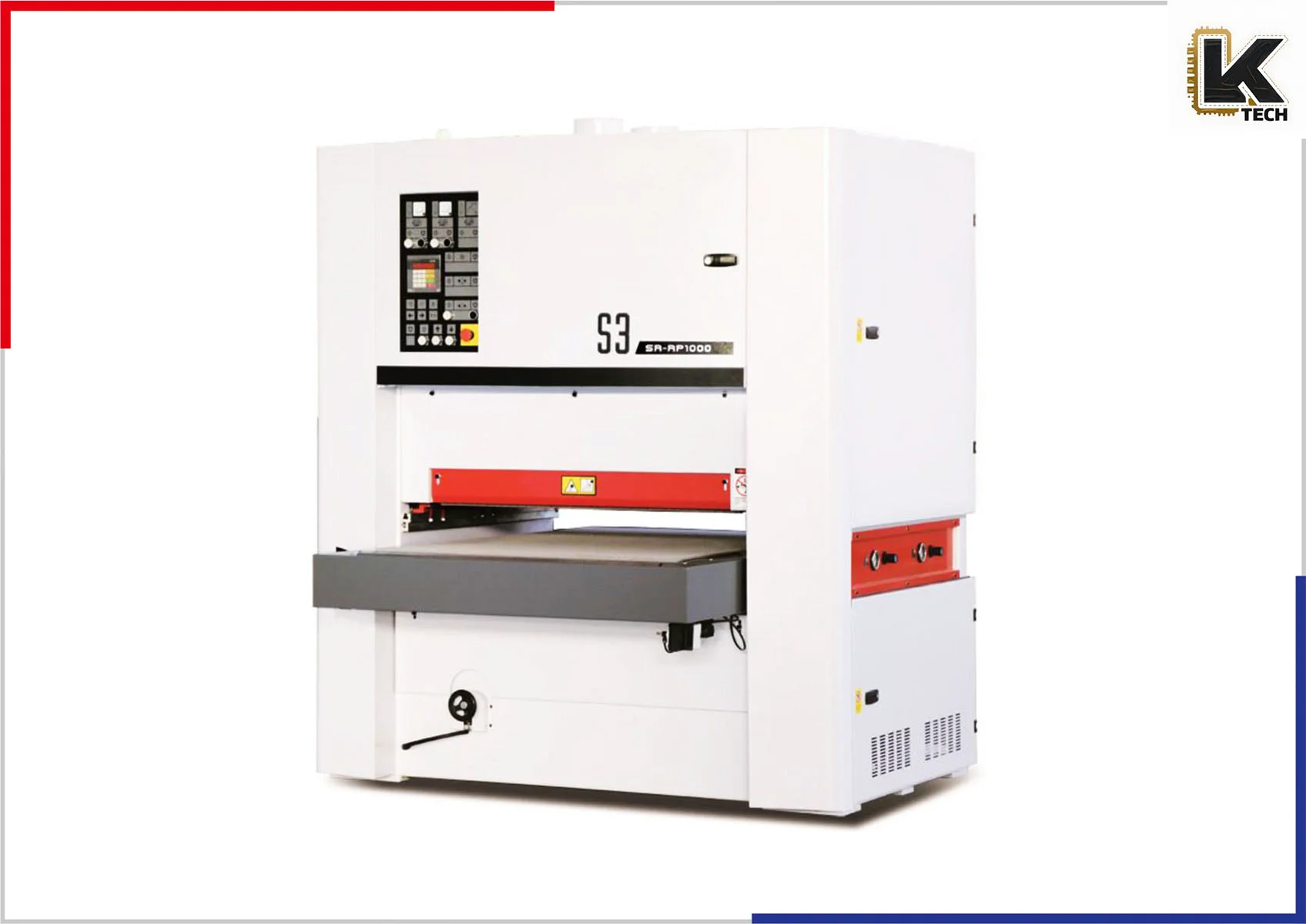

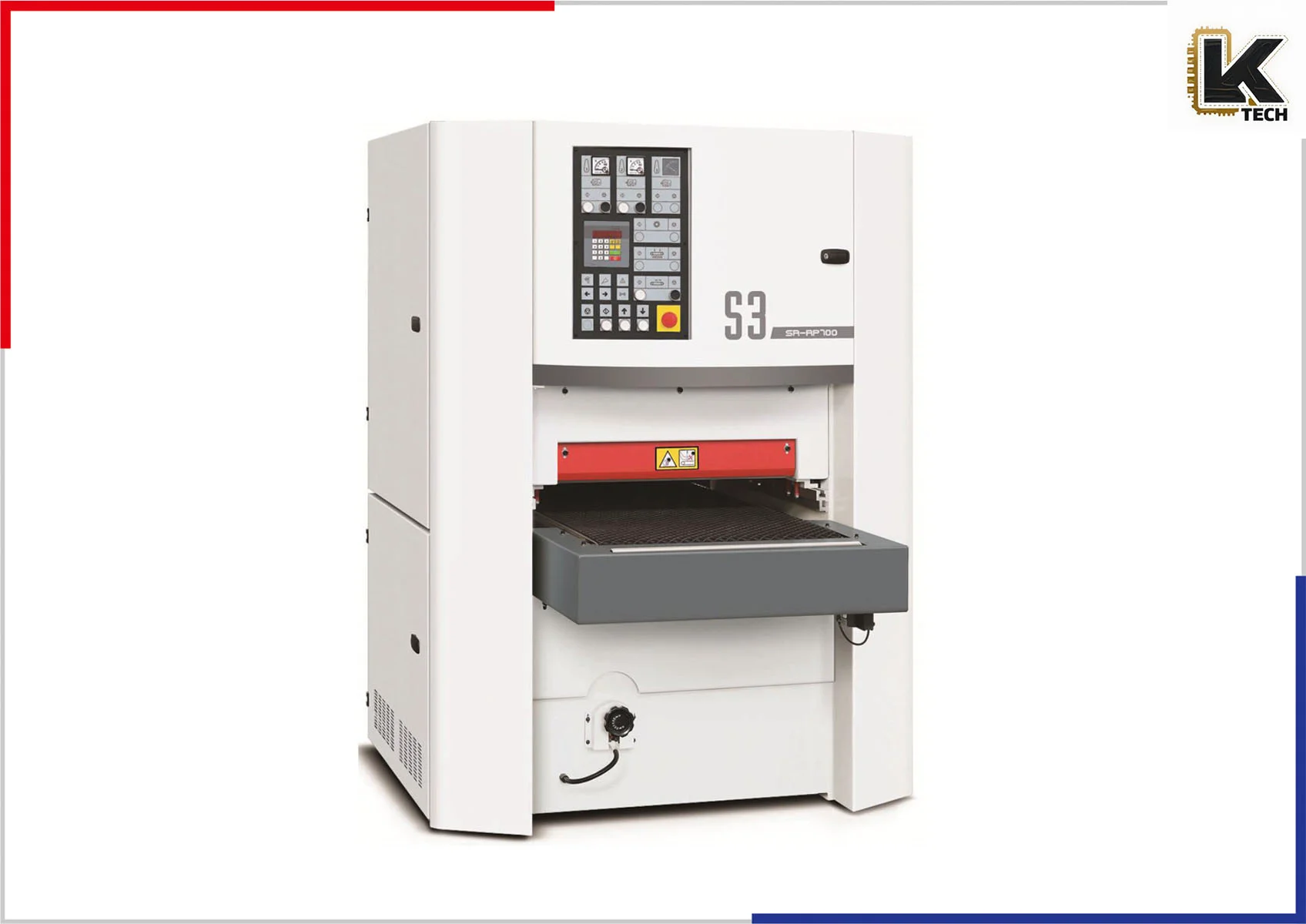

SR-R-RP Series Basic Surface Sander with Three Belts

Introducing the SR-R-RP Series Basic Surface Sander, the pinnacle of precision sanding technology designed for industrial and professional use. This exceptional machine is engineered to deliver superior surface finishes, increased productivity, and exceptional durability in woodworking and material processing applications.

Key Features & Specifications

  1. Versatile Work Dimensions:
    • Maximum Work Width: 1300 mm (with SR-R-RP1300 model)
    • Minimum Work Length: 580 mm
    • Thickness Capability: 3-110 mm, suitable for a wide range of materials including hardwood, softwood, and composite materials.
  2. Innovative Abrasive Belt Design:
    • The SR-R-RP series utilizes three belts, providing a comprehensive and uniform sanding solution that enhances efficiency and quality.
    • Each abrasive belt measures 1330 x 2200 mm for the SR-R-RP1300 version and 1030 x 2200 mm for others, allowing extensive coverage to minimize operational time while ensuring great finish quality.
  3. Precision Engineering:
    • Each unit features a diameter of unit design of Φ240/Φ240/Φ210, ensuring optimal contact with the workpiece surface for an even finish.
    • Shore Hardness is set at steel/80sh/70sh, accommodating diverse belt designs and maintaining integrity during extended operational use.
  4. Power & Performance:
    • Working with a total power of up to 83 kW in the SR-R-RP1300 version, this sander can handle larger workloads without sacrificing performance.
    • Adjustable conveyor speed ranging from 5 to 30 m/min allows for customized sanding based on material, improving both efficiency and quality.
  5. Robust Construction:
    • Built with high-quality steel and a sound design, the machine features an impressive overall dimension of 2040 x 3060 x 2180 mm for stability and durability in demanding environments.
    • The weight of 5100 kg lends it the sturdiness required to maintain consistent performance and precision.
No. Item SR-R-RP1300 SR-R-RP1000 SR-R-RP700
1 Max. Work Width (mm) 1300 1000 700
2 Min. Work Length (mm) 580 580 580
3 Work Thickness Range (mm) 3-110 3-110 3-110
4 Unit Diameter (mm) Φ240/φ240/φ210 Φ240/φ240/φ210 Φ240/φ240/φ210
5 Unit Shore Hardness Steel/80Sh/70Sh Steel/80Sh/70Sh Steel/80Sh/70Sh
6 Air Compression (MPa) 0.6 0.6 0.6
7 Abrasive Belt Size (mm) 1330×2200 1030×2200 730×2200
8 Conveyor Speed (m/min) 5-30 5-30 5-30
9 Total Power (kW) 83 64 48
10 Overall Dimensions (mm) 2040×3060×2180 1740×3060×2180 1430×3060×2180
11 Platform Height Range (mm) 905-1015 905-1015 905-1015
12 Net Weight (kg) 5100 4400 3700
13 Voltage Options 380V/50Hz/3PH 380V/50Hz/3PH 380V/50Hz/3PH

User-Friendly Control System

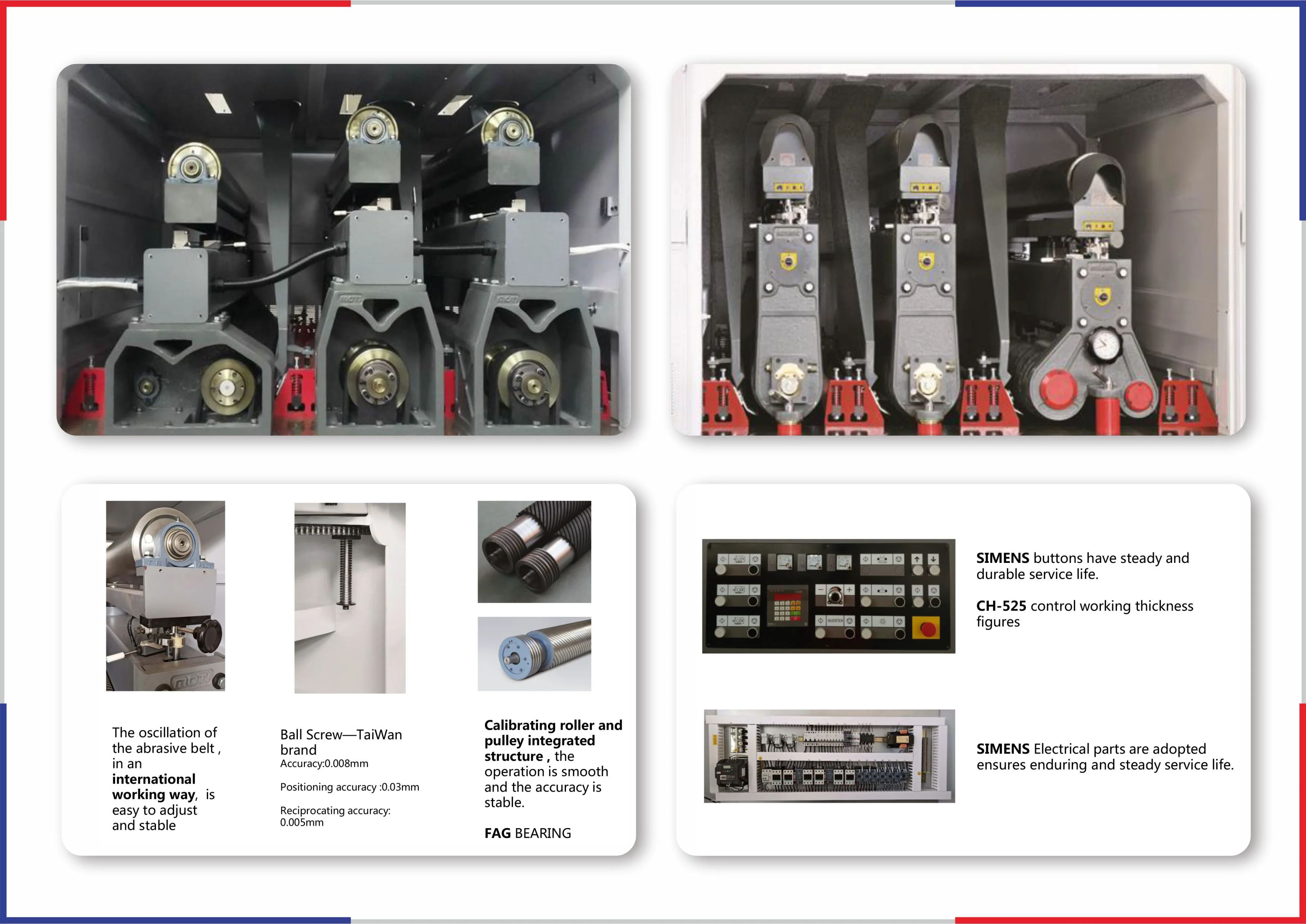

The SR-R-RP series is equipped with a user-friendly digital control system including the CH-525 control panel. This advanced interface features intuitive buttons and displays for ease of use and monitoring, ensuring operators can make adjustments with confidence and precision.

  • SIMENS Control Technology: The inclusion of SIMENS electrical components ensures reliable performance, longevity, and ease of access for maintenance.
  • Accurate Calibration: The machine boasts a ball screw from Taiwan that maintains an accuracy of 0.008mm and positioning accuracy of 0.03mm for consistent results across multiple runs.

Safety Features

Constructed with operator safety in mind, the design incorporates multiple safety features such as emergency stop buttons and robust guarding mechanisms to prevent mishaps. The layout allows easy access to controls, keeping the operator in control of the sanding process at all times.

Applications

The SR-R-RP Series Basic Surface Sander is ideal for various woodworking applications:

  • Furniture manufacturing and finishing
  • Cabinet production
  • Door and panel processing
  • Decorative material sanding

No matter the project scope, this machine can efficiently deliver a flawless finish that meets both aesthetic and structural demands.

Maintenance and Service

Maintaining the SR-R-RP Series is straightforward thanks to significant accessibility to the machine’s components. Routine check-ups and servicing are made easier with user-friendly designs that ensure down-time is minimized and efficiency is prioritized.

Conclusion

Investing in the SR-R-RP Series Basic Surface Sander means committing to quality, precision, and reliability for your woodworking projects. Designed for performance and durability, this machine will enhance your production capabilities and ensure that every piece meets the highest standards of craftsmanship.

Whether you’re a small workshop or a large manufacturing unit, this versatile sanding machine will transform your processing with its blend of innovative engineering and superior functionality.

Upgrade your equipment and elevate your craft with the SR-R-RP Series Basic Surface Sander—where efficiency meets excellence!
