Disc Tracking Tool Changing and Cutting Machine (ITE-CS12Q)

In the ever-evolving landscape of manufacturing, the need for precision, efficiency, and adaptability has never been more paramount. The ITE-CS12Q Disc Tracking Tool Changing and Cutting Machine stands as a testament to advanced engineering and innovative technology. Designed to revolutionize your cutting operations, this machine provides exceptional handling and versatility for various applications—including those in woodworking, plastic, and soft metal industries.

Key Features

1. Robust Workbench Dimensions
   • With a workbench stroke measuring 1300mm x 2800mm x 200mm, the ITE-CS12Q allows for ample space to accommodate a variety of workpieces. This large working area enhances productivity, allowing for multiple projects to be executed simultaneously, thereby saving time and increasing throughput.
2. Powerful Spindle Motor

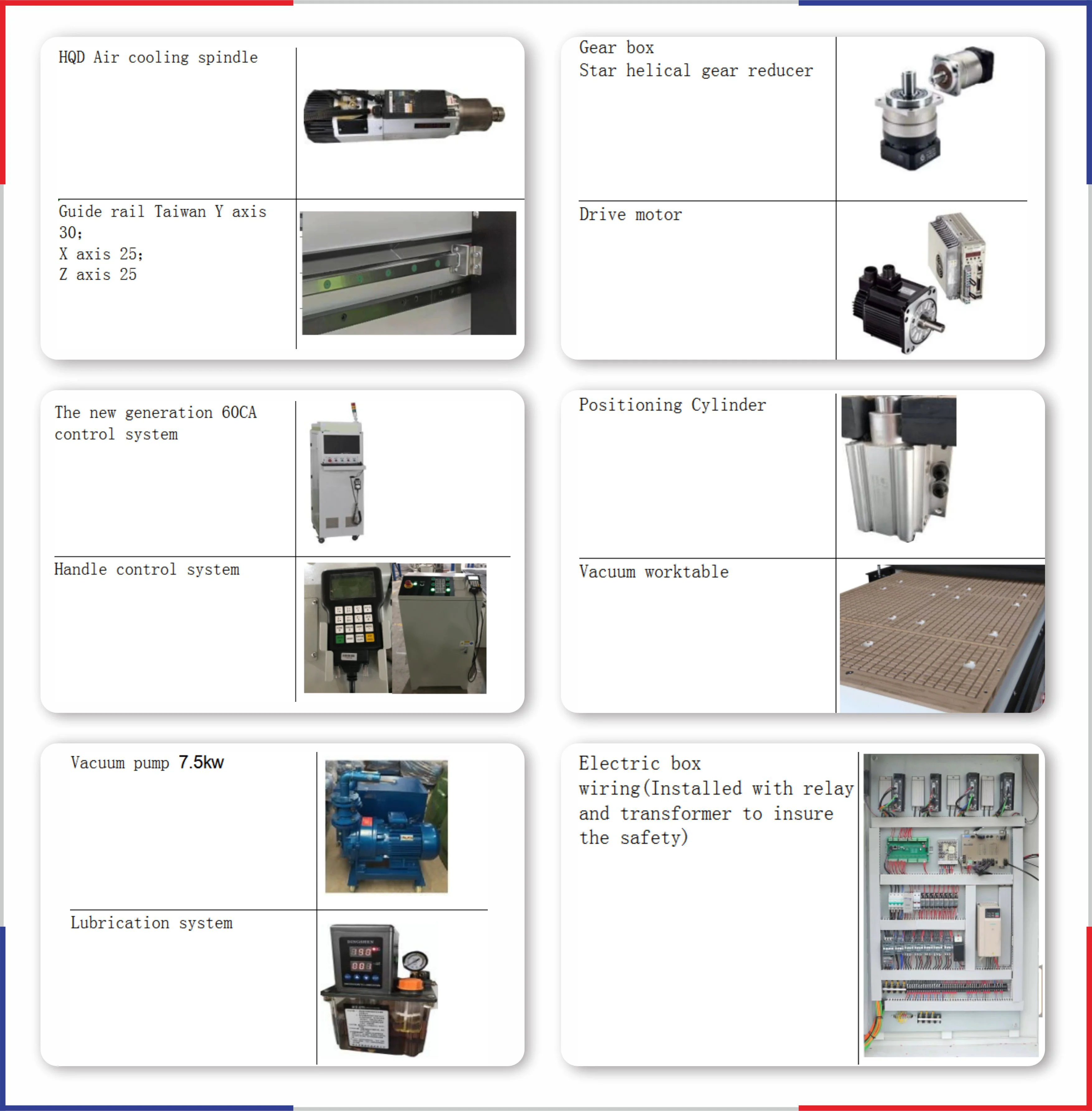

   • The machine is equipped with a high-performance 9KW HQD air-cooled spindle motor, capable of reaching speeds of up to 18,000 RPM. This exceptional power and speed ensure efficient cutting and shaping of materials, leading to reduced cycle times and optimized operational efficiency.
3. High-Speed Processing
   • The ITE-CS12Q boasts impressive maximum speeds without any load of 60m/min on both axes X and Y, and 20m/min on the Z axis. This fast-motion capability facilitates a swift approach to cutting operations, shortening the overall time to complete tasks.
4. Enhanced Servo Mechanism
   • The integration of a 1.5KW AC servo motor (Hechuan brand) provides precise motion control and enhances the machine’s overall performance. The servo mechanism guides the axes with outstanding accuracy, ensuring that each cut meets specifications with minimal waste.
5. Advanced Control System
   • The ITE-CS12Q features the newer generation 60CA model F31-FC-A-60CA control system. This user-friendly platform includes a computer interface, screen, mouse, and keyboard, allowing for straightforward programming and operation. The control system is designed for intuitive navigation, giving operators command over every aspect of the machine’s function.
6. Effective Positioning System
   • The cylinder positioning mode ensures repeatable precision across every task. This feature guarantees that each workpiece is consistently placed and aligned for optimal cutting, minimizing the occurrence of errors.
7. Versatile Functionality
   • This machine is versatile, offering optional functionalities including a loading and unloading system plus a 9-axis drilling package. This feature set allows it to handle complex jobs efficiently, making it an ideal choice for businesses looking to expand their capabilities.
8. Reliable Guide Rails and Gear Box
   • The ITE-CS12Q is built on Taiwan 30 and 25 guide rails, ensuring smooth and stable operation under heavy use. In conjunction with a Star helical gear reducer gearbox, the machine provides consistent power without sacrificing performance—reducing wear and tear over time.
9. Integrated Safety Features
   • Safety is paramount in any industrial setting. The electrical box wiring is designed with built-in safety measures, including a relay and transformer. These features provide protection against electrical faults, making operation safer for technicians and operators.
10. Robust Lubrication and Cooling Systems
    • The machine is equipped with an efficient lubrication system which ensures that all moving parts remain well-lubricated during operation. Moreover, the integrated vacuum pump, rated at 7.5KW, aids in keeping the workspace tidy by managing debris and dust, enhancing the overall working environment.
11. Included Accessories
    • The ITE-CS12Q comes with a comprehensive set of accessories, including a handle control system that allows operators to manage the machine remotely. This feature streamlines production processes by enabling operators to work efficiently without being tied to the machine.
12. Vacuum Worktable
    • The vacuum worktable ensures that materials are secured during cutting, enhancing safety and precision. The vacuum system keeps the workpiece in place, preventing any shifting that could disrupt the accuracy of the cuts.

Applications of the ITE-CS12Q Machine

The versatility and functionality of the ITE-CS12Q make it a must-have in a multitude of industries. Here are several applications where this cutting machine excels:

1. Woodworking
   • Ideal for furniture makers, cabinet manufacturers, and timber processing companies, the machine offers precision cutting for intricate designs, complex shapes, and varied sizes in wood.
2. Plastic Fabrication
   • It is capable of efficiently cutting and shaping plastics, perfect for manufacturers creating signage, displays, and various components.
3. Metalworking
   • The machine can also handle soft metals, making it suitable for industries involved in the production of metal parts and assemblies.
4. Aerospace and Automotive
   • With its precision capabilities, the ITE-CS12Q can be utilized for parts that require exacting standards, such as those found in aircraft and automotive manufacturing.
5. Prototype Development
   • The machine’s adaptability allows designers and engineers to develop prototypes quickly, enabling faster iterations during the design phase.

Benefits of Using the ITE-CS12Q

Implementing the ITE-CS12Q Disc Tracking Tool Changing and Cutting Machine into production lines provides numerous benefits:

• Increased Efficiency: With its rapid processing speeds and robust construction, your productivity will see significant improvements. The machine can operate around the clock, maximizing output.
• Cost Savings: By reducing waste through precision cuts and decreasing cycle times, businesses can realize substantial cost savings in materials and labor.
• Enhanced Quality: The high-precision nature of the ITE-CS12Q ensures that the quality of work remains consistently high, meeting and even exceeding industry standards.
• Rapid Return on Investment (ROI): Given its advanced features and capabilities, investing in the ITE-CS12Q typically results in a quick return due to boosted productivity and reduced operational costs.
• User-Friendly Operation: Equipped with a modern control system, this machine is easy to operate, allowing personnel to get up to speed quickly and minimizing the learning curve associated with new machinery.

Conclusion

Investing in the ITE-CS12Q Disc Tracking Tool Changing and Cutting Machine is not just a purchase of a machine; it is a commitment to improving your operations. By harnessing cutting-edge technology tailored for precision, versatility, and reliability, businesses can remain competitive in today’s fast-paced marketplace. Whether your industry focuses on woodworking, plastics, metals, or prototyping, this machine promises to deliver on all fronts—making it a pivotal addition to any production line.

Experience the transformation in your processing capabilities with the ITE-CS12Q and redefine what your business can achieve. Turn your cutting and shaping challenges into seamless solutions. Equip your shop with the future of machining today!
