Heavy Duty Band Saw: Precision, Power, and Performance

An Overview

In the realm of woodworking and metalworking, the right tools can make all the difference between a successful project and a frustrating experience. Enter the Heavy Duty Band Saw, a formidable piece of machinery designed to meet the demands of industries ranging from construction to bespoke carpentry. Engineered for precision, power, and durability, this band saw stands out for its exceptional capabilities and robust construction.

Whether you’re a dedicated professional or a passionate enthusiast, this band saw is your ticket to achieving flawless cuts and efficient processing across various materials.

Technical Specifications

Our Heavy Duty Band Saw comes in four variants – ITE3450, ITE3460, ITE3470, and ITE3480. Each model is tailored for specific needs, ensuring that no matter the operation, you’ll find the perfect fit.

Feature Unit ITE3450 ITE3460 ITE3470 ITE3480
Motor Power W 4000 4000 4000 5500
Saw Wheel Diameter mm 510 610 710 810
Blade Size (L×W) mm 4100×19~38.1 4590×19~38.1 5020×19~50 5610×19~50
Blade Teeth Per Inch - 3TH 3TH 3TH 2TH
Blade Line Speed (50Hz) m/s 22 26 26 18
Table Pivot Capacity Degrees 0~45° 0~45° 0~45° 0~45°
Table Size mm 640×500 700×610 900×700 (900+200)×700
Processing Scope
- Max Height mm 350 430 430 470
- Max Width mm 500 600 700 800
Dust Extraction mm 100 100 100 100

Packaging Information

Model G.W./N.W. Dimensions Quantity per Container
ITE3450 310/280kg 930×725×2130mm 18/36 sets (20’/40")
ITE3460 365/330kg 1030×730×2218mm 15/33 sets (20’/40")
ITE3470 442/382kg 2250×745×1145mm 14/30 sets (20’/40"),
32 sets (40’HQ)
ITE3480 524/441kg 2500×730×1270mm 6/12 sets (20’/40")

All models feature 0-45° table pivot capacity and 100mm dust extraction. Blade specifications and processing capabilities vary by model size.

Construction and Durability

The Heavy Duty Band Saw is designed with the highest quality materials to ensure longevity and dependability. The robust frame is constructed to withstand rigorous use, and the machine’s key components, such as the saw wheels, are precision-engineered for balance and stability.

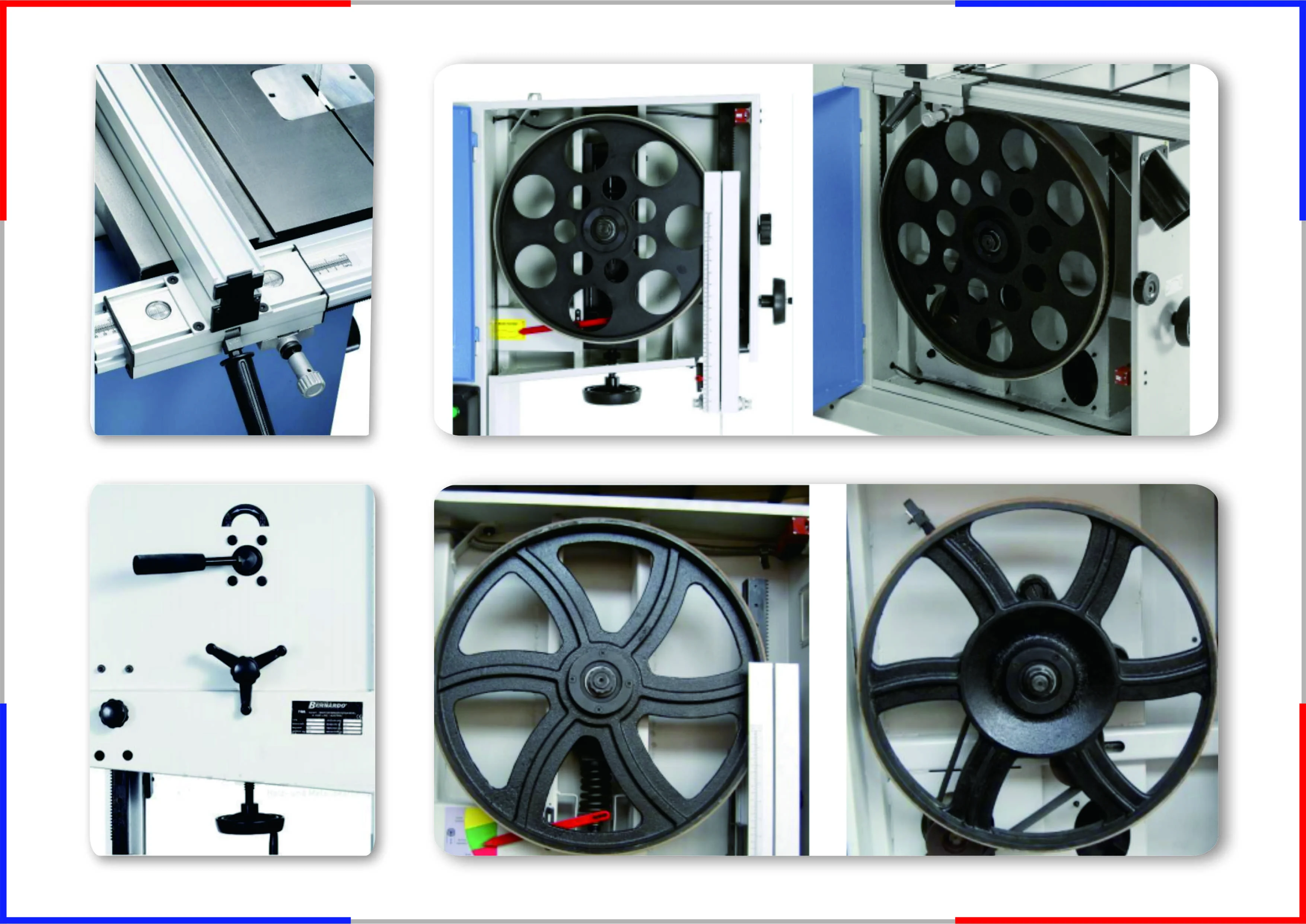

Saw Wheel Design: Each model features heavy-duty saw wheels that ensure smooth and accurate operation. They are crafted to minimize vibration and improve blade tracking, which is crucial for achieving clean, straight cuts.

Precision Engineering: The band saws come with finely calibrated settings for blade tension and tracking, allowing you to adjust easily, ensuring optimal blade performance across various materials and thicknesses.

User-Friendly Features

Efficient operations do not only rely on power but also on user-friendliness. This band saw is equipped with a range of features designed to enhance ease of use and safety.

  • Adjustable Table: The adjustable table allows for precise cutting angles between 0-45 degrees, enabling various applications, from intricate joinery to simple rip cuts. The table’s generous dimensions provide ample support for larger materials.
  • Safety Mechanisms: Safety is paramount while using heavy machinery. The band saw includes an emergency stop feature, blade guards, and a complex power switch system to prevent accidental start-up.
  • Quick Blade Changes: The band saw is engineered for easy blade changes, minimizing downtime between projects. This feature ensures you spend more time cutting and less time on maintenance.

Performance and Processing Capacity

The Heavy Duty Band Saw excels at processing various materials such as wood, plastic, and even metal.

Cutting Capabilities: With blade speeds and configurations tailored to meet diverse needs, you can tackle intricate cuts in hardwood, softwood, and composites. The adjustable pivot capability enables beveled cuts that offer versatility for every project.

  • Max Height and Width: The varying processing heights and widths across models ensure that you can handle everything from small, detailed work to large, heavy blocks of material effortlessly.

Dust Extraction: Equipped with a dust extraction port, this band saw reduces workbench mess and ensures a cleaner working environment. It seamlessly integrates with dust collectors and vacuum systems for efficient debris management.

Applications

  1. Woodworking: Artisan woodworkers appreciate the precision and clean cuts offered by the Heavy Duty Band Saw when creating furniture, cabinetry, or sculptures.
  2. Metalworking: For professionals in metal fabrication, this band saw’s capability to handle tougher materials sets it apart, making it an indispensable tool for cutting metal parts and components.
  3. Construction: In construction, this saw provides the ability to quickly and accurately cut framing lumber and sheathing, essential for building projects of all sizes.

Conclusion

The Heavy Duty Band Saw is not merely a tool; it’s a versatile partner that brings a wealth of capabilities to your workshop, allowing you to execute precise cuts in a variety of materials.

Whether you are a hobbyist fine-tuning your craftsmanship or a professional seeking reliability and efficiency in industrial settings, this band saw caters to your requirements with aplomb.

With its robust construction, powerful motor options, user-friendly design, and extensive processing capabilities, this band saw is your gateway to creating high-quality work with speed and accuracy.

Whether you pursue intricate detailing or robust cutting tasks, invest in the Heavy Duty Band Saw to elevate your operational efficiency and craftsmanship excellence.
