ITE Series Single and Double Row Drilling Machines: Elevate Your Woodworking Precision

In the realm of woodworking, accurate and efficient drilling is paramount to the integrity and quality of the final product. Enter the ITE Series of Single and Double Row Drilling Machines—designed to revolutionize how you approach your drilling tasks. With advanced engineering and innovative features, the ITE Series represents an evolution in reliability, speed, and precision. Whether you are a seasoned woodworker or a novice, this machine offers unrivaled performance that will enhance your production and product quality.

Overview of the ITE Series

The ITE Series consists of three models: ITE-1A, ITE-2B, and ITE-2C, each tailored to meet varying needs and specifications across different woodworking applications. These machines are engineered to accommodate a wide range of workpiece dimensions and thicknesses, thereby allowing for versatility in operations.

  1. ITE-1A: Perfect for manufacturers seeking a high-quality yet efficient drilling solution.
  2. ITE-2B: Offers enhanced functionality for increased output with dual drilling lines.
  3. ITE-2C: The most comprehensive model designed for versatility and performance.

Let’s delve into the specifications and features of each model to understand the unique benefits they offer.

ITE-1A: Precision Meets Performance

The ITE-1A model is uniquely engineered to ensure precision across multiple woodworking activities. Its characteristics include:

  • Maximum Center Distance Between Holes: 640mm.
  • Minimum Center Distance Between Holes: 32mm x 50mm.
  • Workpiece Thickness Range: 8mm to 50mm.
  • Total Spindles: 21, 27, or 35, allowing for flexible operation.
  • Diameter of Drill Bit Shaft: 10mm, which accommodates a variety of standard drill bits.
  • Max Drilling Diameter: 35mm (single bit) and 13mm (multi-bits), suitable for various drilling needs.
  • Depth of Drilling: 50mm ensures deep and thorough drilling.
  • Spindle Speed: 2840rpm, optimizing the drilling efficiency.
  • Total Power: 1.5kW, allowing for powerful operations while maintaining energy efficiency.
Parameter Specification
Max center distance between holes 640×600 mm
Min center distance between holes 32×50 mm
Workpiece thickness 8–50 mm
Total quantity of spindles 21/27/35
Total quantity of drill lines 1
Max drilling diameter 35 mm (single bit) 13 mm (multi bits)
Max drilling depth 50 mm
Diameter of drill bit shaft 10 mm
Installation tool length 57/70 mm
Spindle speed 2840 rpm
Total power 1.5 kW
Net weight 450 kg
Overall dimensions 1100×900×1450 mm

This model brings together advanced features in a compact design, making it ideal for both small workshops and large manufacturing units.

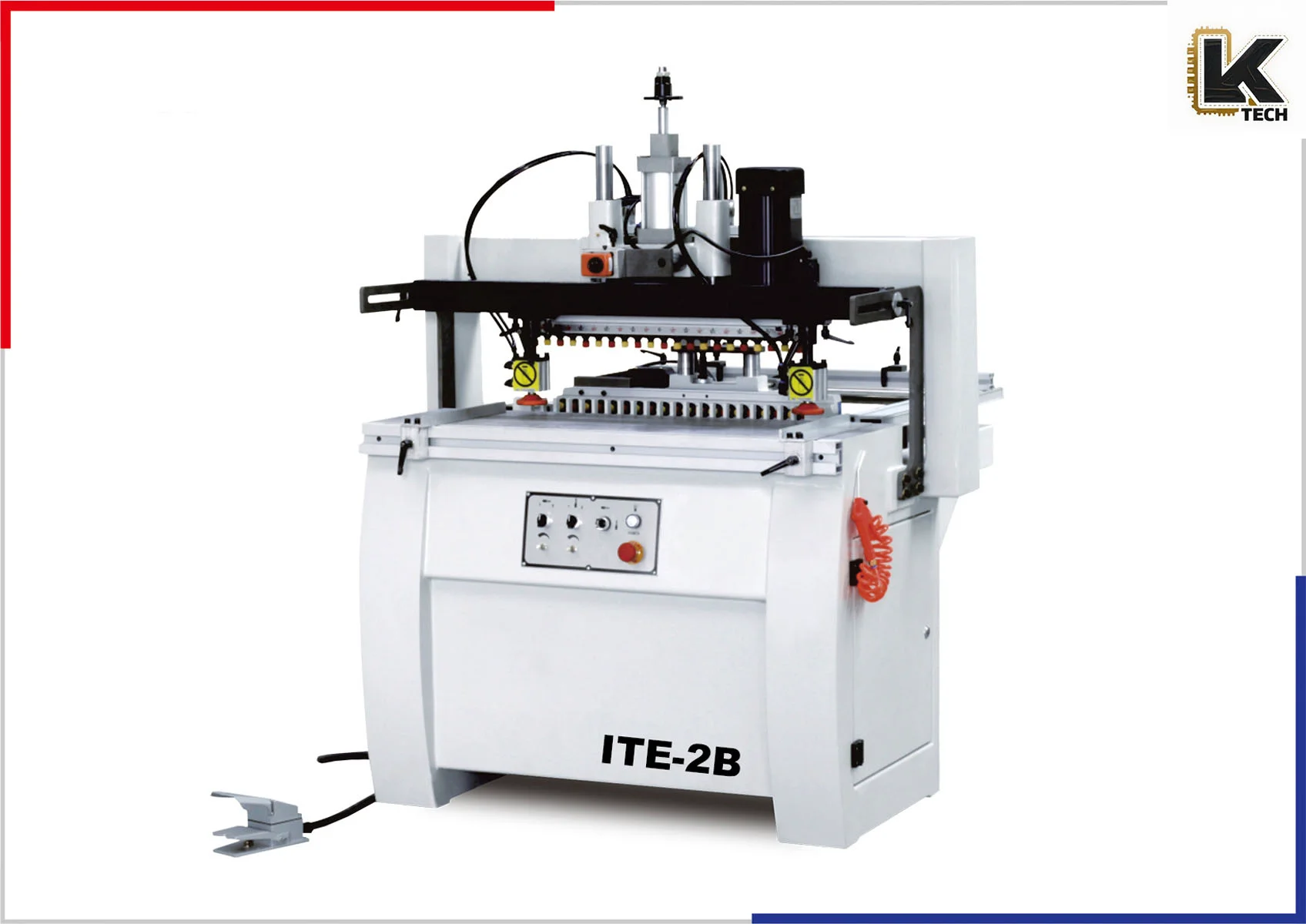

ITE-2B: A Step Ahead in Dual Drilling

As the middle-tier offering, the ITE-2B model provides enhanced capabilities that make it a go-to choice for professionals engaged in high-volume woodworking tasks. Its key features include:

  • Maximum Center Distance Between Holes: 640mm.
  • Minimum Center Distance Between Holes: 32mm x 50mm.
  • Workpiece Thickness Range: 8mm to 50mm.
  • Total Quantity of Spindles: 42, providing robust drilling options.
  • Total Drill Lines: 2, enhancing productivity by drilling multiple holes simultaneously.
  • Max Drilling Diameter: Both single and multi-bits, with the same capacity as the ITE-1A.
  • Max Drilling Depth: 50mm, allowing for deeper applications.
  • Spindle Speed: 2840rpm, maintaining the efficiency you expect in a high-performance drill.
  • Total Power: 3kW, which balances power with operational needs.

The ITE-2B is tailored for those looking to maximize efficiency without sacrificing quality, making it perfect for larger jobs that require consistent, reliable outputs.

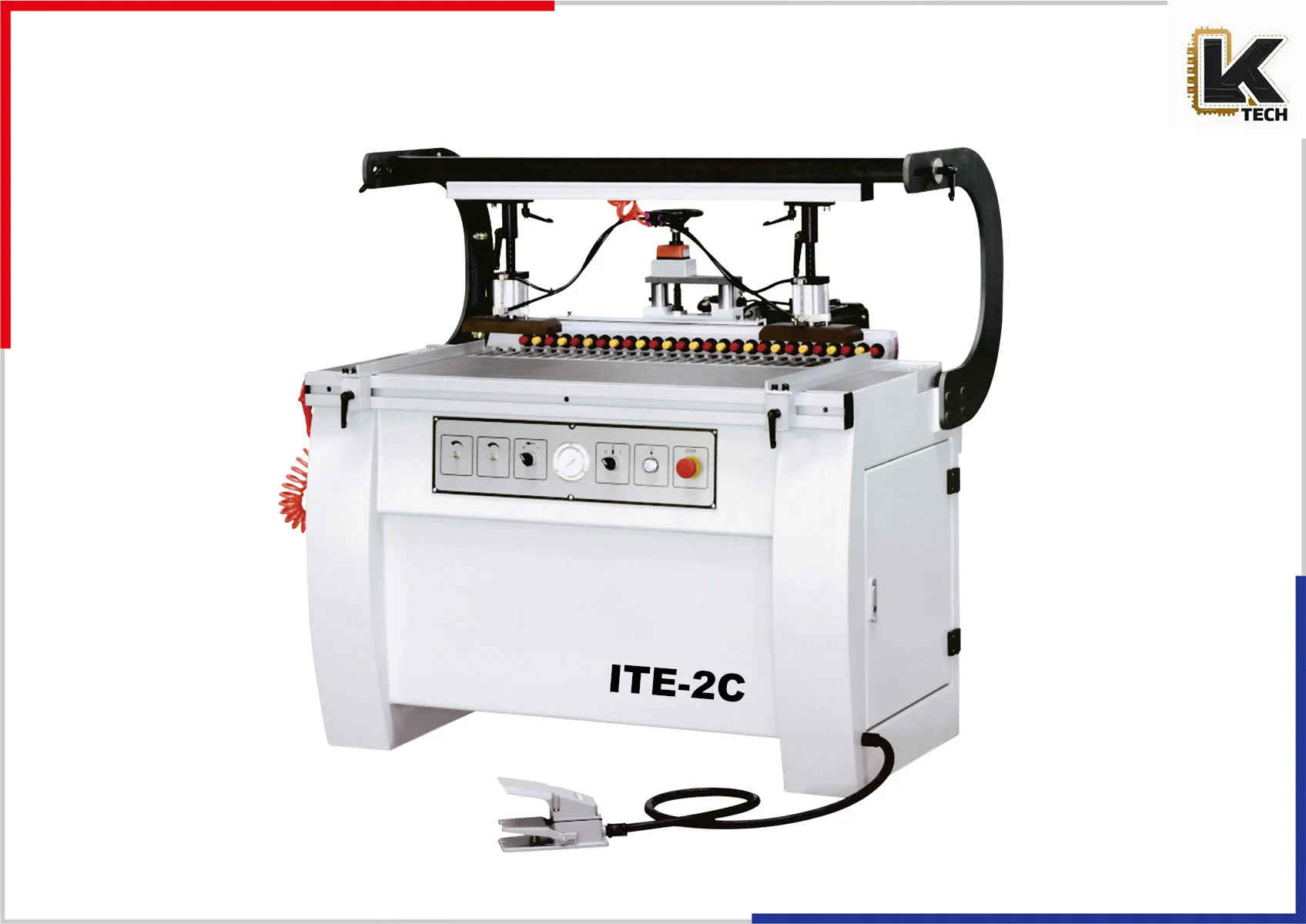

ITE-2C: The Ultimate Woodworking Assistant

Finally, the ITE-2C stands as the most advanced option in the ITE Series. It combines increased capacity with added technological benefits to serve a wide variety of drilling needs. Here’s what the ITE-2C offers:

  • Maximum Center Distance Between Holes: 640mm.
  • Minimum Center Distance Between Holes: 32mm x 50mm.
  • Workpiece Thickness Range: 8mm to 50mm.
  • Total Quantity of Spindles: 42, ensuring that complex jobs can be handled easily.
  • Total Drill Lines: 2.
  • Max Drilling Diameter: 35mm (single bit) and 13mm (multi-bits).
  • Max Drilling Depth: 50mm, maintaining consistency across the series.
  • Spindle Speed: 2840rpm, ensuring rapid production rates.
  • Total Power: 3kW, executing tasks with haste and authority.

The ITE-2C is built to cater to high-demand scenarios, providing woodworkers with the flexibility and power they need to engage in diverse drilling applications, whether it’s for furniture making or specialized cabinetry.

Parameter ITE-2B ITE-2C
Max center distance between holes 600×640 mm 600×640 mm
Min center distance between holes 50×32 mm 50×32 mm
Workpiece thickness 8–50 mm 8–50 mm
Total quantity of spindles 21×2=42 21×2=42
Total quantity of drill lines 1+1=2 1+1=2
Max drilling diameter 35 mm (single bit) 13 mm (multi bits) 35 mm (single bit) 13 mm (multi bits)
Max drilling depth 50 mm 50 mm
Diameter of drill bit shaft 10 mm 10 mm
Installation tool length 57/70 mm 57/70 mm
Spindle speed 2840 rpm 2840 rpm
Total power 3 kW 3 kW
Net weight 650 kg 500 kg
Overall dimensions 1300×1200×1650 mm 1200×950×1450 mm

Features That Set the ITE Series Apart

Durability

One of the hallmarks of the ITE Series is its robust construction. Built with high-quality materials, these machines are designed to withstand the rigors of daily operation. The heavy-duty design minimizes vibrations, ensuring operating consistency and precision during use.

User-friendly Control Panel

Each model comes equipped with an intuitive control panel that simplifies operation. It features easy-to-understand functions and settings making it accessible for users with varied experience levels. This empowers operators to optimize settings tailored to their specific drilling tasks efficiently and quickly.

Flexibility and Adjustability

Offering a range of drilling diameters and depths, the ITE Series guarantees that users can handle a wide array of workpiece requirements. With adjustable options, users can quickly switch settings and drill configurations which saves valuable time during production runs.

Enhanced Safety Features

Safety is paramount in any workshop environment. Each ITE drilling machine is designed with safety features that protect both the equipment and the operator. Emergency stop buttons, user-friendly guards, and fail-safes ensure peace of mind while operating at high speeds or depths.

Low Maintenance Needs

The ITE Series is designed to require minimal maintenance, allowing users to focus on their projects rather than servicing the equipment. Easy-access components and a durable design reduce wear and tear, promoting longevity and reliability.

Versatile Applications

The ITE Series is not restricted to standard drilling applications; these machines cater to a wide range of woodworking styles and industries, including:

  • Furniture Production: Create intricate designs while maintaining structural integrity.
  • Cabinet Making: Perfect for producing quality, durable cabinetry.
  • Craft and Hobby Projects: Adjust the settings for various DIY tasks while providing professional-grade results.
  • Industrial Applications: Suitable for factories that require high volume and precision drilling operations.

Conclusion: Invest in Your Craft

The ITE Series Single and Double Row Drilling Machines represent a significant advancement in woodworking technology. With their outstanding specifications, durability, user-friendly design, and versatile applications, these machines can enhance productivity and precision in any woodworking operation.

Whether you choose the ITE-1A for simplicity, the ITE-2B for efficiency, or the ITE-2C for its advanced capabilities, you’re investing in a high-quality drilling solution that will serve you well into the future. Elevate your woodworking processes today with the ITE Series and experience the difference that precision machinery can bring to your craft.
