ITE-K1325 Single Spindle CNC Machine

Introducing the ITE-K1325, a cutting-edge single spindle CNC machine that seamlessly integrates computer control with high-performance machining capabilities. Designed for precision, efficiency, and versatility, the ITE-K1325 stands as a game-changer in the realm of CNC machinery. Whether you’re an entrepreneur looking to enhance production on a budget or a seasoned operator seeking a robust machine for intricate designs, the ITE-K1325 is the perfect fit for your workshop.

Key Features

1. Work Area Dimensions:

The ITE-K1325 boasts a generous work area measuring 1300 × 2500 × 200 mm, making it ideal for extensive projects that require ample space. This expansive workbench allows for the efficient handling of large materials, facilitating complex tasks without the need for frequent repositioning.

2. Advanced Spindle Motor:

Equipped with an HQD 6KW air-cooled spindle capable of a remarkable 18,000 RPM, the ITE-K1325 delivers superior cutting performance. The high-speed operation ensures smooth finishes and excellent precision, making it suitable for a wide variety of materials, including wood, plastics, and soft metals.

3. Speed and Efficiency:

The machine’s movement capabilities are optimized for speed and reliability. With maximum speeds reaching 60 m/min for the X-axis, and 20 m/min for both the Y and Z axes, you can rely on the ITE-K1325 to deliver quick results without compromising on quality. This ensures efficient production cycles, allowing you to meet tight deadlines and high-demand requirements.

4. Superior Control System:

The ITE-K1325 is equipped with a WEIHONG GOC A control system that provides an intuitive interface for operators. The system includes a computer screen, mouse, keyboard, and software that enables seamless integration and programming of complex designs. The control panel is designed for ease of use, offering users immediate access to vital control functions without any steep learning curves.

5. Durability and Stability:

Constructed with a Taiwan 25 guide rail, the ITE-K1325 is built for durability and stability. This robust design ensures consistent performance even during extended use, making it an ideal choice for workshops requiring a reliable and long-term investment in CNC technology.

6. Servo Performance:

Utilizing Lei Sai semi-servo motors and an HB5758 drive, the ITE-K1325 offers exceptional positioning accuracy and responsiveness. This servo integration not only enhances operational precision but also extends the lifespan of the machine, reducing wear and tear.

7. Versatility with Tool Adaptability:

One of the standout features of the ITE-K1325 is its ability to accommodate multiple tools depending on the requirements of a project. Whether you’re routing, engraving, or milling, this machine can be configured to handle a wide range of tasks with outstanding efficiency.

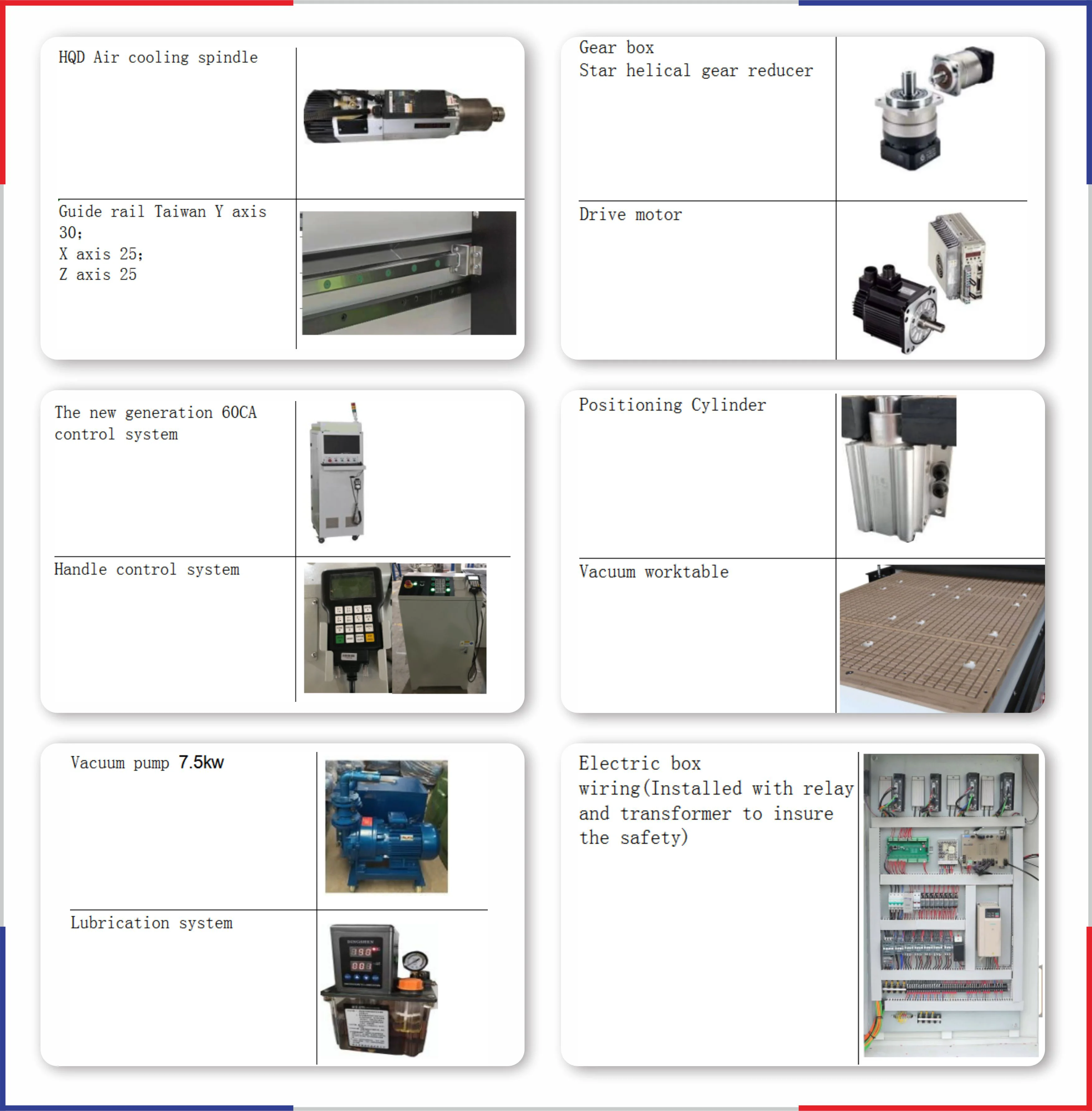

Parameter Specification
Model ITE-K1325
Workbench Stroke 1300×2500×200 mm
Spindle Motor HQD 6KW air-cooled 18000 rpm
Max Speed (No Load) X Axis: 60 m/min Y Axis: 60 m/min Z Axis: 20 m/min
Processing Speed X Axis: 20 m/min Y Axis: 20 m/min Z Axis: 60 m/min
Servo Lei Sai semi servo and drive HB5758
Control System Weihong operating system 95A3L (including computer, screen, mouse, keyboard)
Guide Rail Taiwan 25 guide rail
Inverter Fuling frequency converter 7.5KW

Applications

The ITE-K1325 is an incredibly versatile machine, suitable for various industries, including:

  • Woodworking: Create intricate designs, furniture, and cabinetry with precision.
  • Sign Making: Manufacture custom signs efficiently with intricate detail.
  • Prototype Development: Bring your design concepts to life quickly, allowing for rapid prototyping of new ideas.
  • Arts and Crafts: Perfect for artistic projects that require fine detail and unique designs.
  • Metalworking: Although primarily suited for softer materials, the ITE-K1325 can work with metals that are compatible with its specifications.

Vacuum System

A crucial aspect of the ITE-K1325 is its integrated vacuum system powered by a 7.5KW pump. The vacuum worktable efficiently holds materials in place during machining, reducing the risk of movement and maximizing precision. This feature ultimately enhances product quality and ensures a cleaner workspace by containing dust and debris.

Electric System

The electric system in the ITE-K1325 has been meticulously engineered for performance and safety. The control box wiring is designed with relays and transformers, ensuring that the machine operates safely under various conditions. This thoughtful design minimizes the risk of electrical issues, enhancing the longevity and reliability of the machine.

Lubrication System

For continuous performance and maintenance of moving parts, the ITE-K1325 incorporates an efficient lubrication system. This system provides essential maintenance that prolongs the life of the machine and minimizes downtime, ensuring your operations run smoothly.

Conclusion

In conclusion, the ITE-K1325 Single Spindle CNC Machine is an exceptional investment for anyone in the machining industry, regardless of experience level. With its robust features, advanced technology, and exceptional control capabilities, this CNC machine ensures that users can produce high-quality work efficiently and effectively. Ideal for a variety of applications, from woodworking to metal fabrication, the ITE-K1325 is built to maximize your workshop’s productivity while offering incredible value.

Enhance your craftsmanship and production potential with the ITE-K1325—where precision meets performance.
