Advanced Spindle CNC Machine (Handle Control): Unleashing Precision and Efficiency in Manufacturing

Introduction

In the ever-evolving landscape of modern manufacturing, the demand for precision, reliability, and efficiency has never been higher. The ITE-K1325 Spindle CNC Machine, equipped with a sophisticated handle control system, fits the bill perfectly. This machine, designed for professionals in woodworking, metalworking, and various fabrication shops, is engineered to provide a unique blend of advanced functionality, user-centric design, and state-of-the-art technology. In this comprehensive description, we will delve into the machine’s specifications, features, and advantages that make it a must-have for any serious manufacturing setup.

Overview of Specifications

The ITE-K1325 Spindle CNC Machine boasts an impressive set of specifications that cater to a wide range of applications:

• Model Variations: Available in three configurations - ITE-K1325A, ITE-K1325B, and ITE-K1325C.

• Workbench Stroke: With a generous stroke of 1300mm x 2500mm x 200mm, it offers ample workspace for various pieces.

• Spindle Motor: Equipped with a high-performance HQD 6KW air-cooled spindle motor, capable of reaching speeds of 18,000 RPM. This ensures high efficiency and rapid processing.

• Maximum Speed

  Under no-load conditions, the machine can achieve speeds of:

  • X-Axis: 60m/min
  • Y-Axis: 60m/min
  • Z-Axis: 20m/min

• Processing Speed

  Consistent with maximum pitch for various axes:

  • Y-Axis: 20m/min
  • Z-Axis: 20m/min

• Servos: Utilizes Lei Sai semi-servo motors with the cutting-edge HBS758 drive, ensuring smooth and precise operation across all axes.

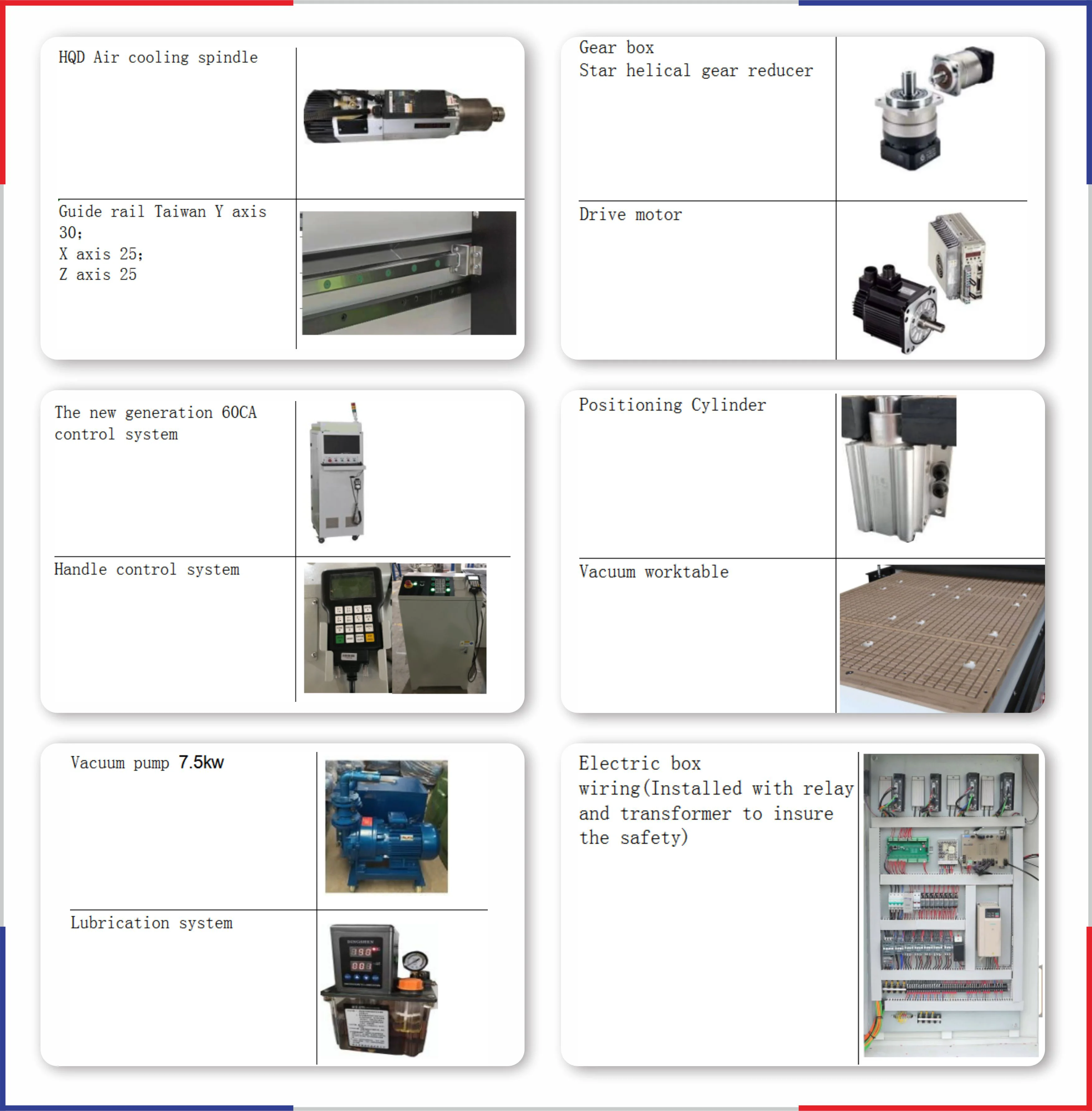

Cutting-Edge Features

1. Handle Control System

The machine is equipped with a user-friendly handle control system that allows operators to easily manage and supervise the CNC process. Ergonomically designed for comfort, the handle features intuitive buttons and joystick functionalities, enhancing productivity while reducing operator fatigue.

2. Advanced Controller

With the new generation 60CA control system, the ITE-K1325 ensures reliable and accurate movement control. The system accommodates various file formats for seamless integration with different design software, giving users unmatched flexibility.

3. High-Speed Spindle and Motors

The HQD Air Cooling Spindle not only enhances cooling during operations but also extends the spindle life, reducing downtime and maintenance costs. The multi-speed capability allows users to adapt to various materials, ensuring versatility across applications.

4. Precision Gearbox

The inclusion of a Star Helical Gear Reducer ensures exceptional torque capacity, providing high efficiency during heavy-duty tasks, and facilitating precise gear ratios for maximum performance.

5. Robust Structure

The overall structural design of the ITE-K1325 is engineered using high-quality metals, ensuring rigidity and stability during operation. This structural integrity reduces vibrations and guarantees precision cutting.

6. Vacuum Worktable

The machine incorporates a versatile vacuum worktable that enables you to securely hold various materials in place during operations. This feature is particularly beneficial for intricate jobs that require consistent accuracy and stability.

7. Lubrication and Maintenance System

Equipped with a comprehensive lubrication system, the CNC machine minimizes wear and tear on mechanical parts, promoting longevity and optimal performance. This system ensures all moving parts are adequately lubricated, reducing friction and heat build-up.

8. Safety Features

Safety is paramount in the manufacturing process. The ITE-K1325 comes with an advanced electric box encompassing a relay and transformer designed to ensure operational safety. Emergency stop buttons are strategically placed for quick access, providing an additional layer of safety for operators.

Versatile Applications

The ITE-K1325 Spindle CNC Machine (Handle Control) is designed to cater to a multitude of applications across varied industries:

• Woodworking: Ideal for carving, engraving, and milling wood products, from simple models to intricate designs.
• Metalworking: Efficiently cuts and precise drill holes in various metals, a necessity in furniture manufacturing and machinery parts production.
• Acrylic and Composites: Capable of handling softer materials, this CNC machine allows the crafting of detailed acrylic signs and components.
• Prototyping: Perfect for rapid prototyping, allowing designers to quickly turn their ideas into physical models, enhancing the product development cycle.

User Experience and Benefits

Improved Productivity

The seamless interface and advanced control the ITE-K1325 provide enhances workflow efficiency. Operators can quickly switch between different tasks, reducing idle time and increasing overall productivity.

Precision and Quality

With high-speed capabilities and a robust construction, this CNC machine ensures a superior finish in all produced components. The precision-guided nature of the machine allows it to achieve complex shapes and designs that would be challenging with traditional techniques.

Cost-Efficiency

Investing in the ITE-K1325 translates into lower manufacturing costs over time. The durability and reliability of this machine significantly decrease maintenance expenses while increasing output, making it a cost-effective solution for business operations.

Usability and Training

The handle control system reduces the learning curve for new operators. With its intuitive design, even those with minimal CNC experience can quickly adapt, ensuring uptime and operational efficiency.

Conclusion

In summary, the ITE-K1325 Spindle CNC Machine signifies a major leap forward in CNC technology. It is equipped with the essential features that meet the needs of diverse industries and applications. From its state-of-the-art handle control system and high-performance spindle motor to user-centric design and advanced safety measures, this machine stands out as a top choice for businesses aiming to enhance their operational capabilities.

By investing in the ITE-K1325, you’re not only acquiring a machine but also a new way of achieving precision manufacturing that can take your production lines to new heights. This CNC machine is undoubtedly a worthy addition to any workshop committed to excellence and innovation. Embrace efficiency, precision, and versatility with the ITE-K1325 Spindle CNC Machine.
